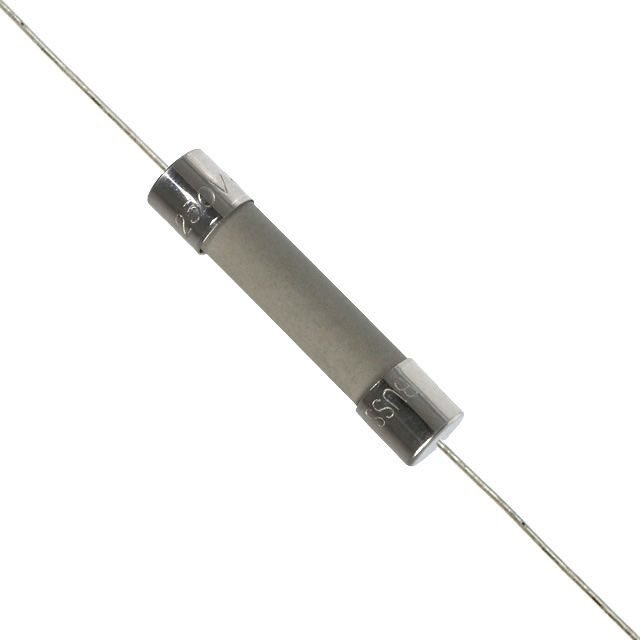

BK/MDA-V-25A

BK/MDA-V-25A is listed in the Fuses range at ChipApex. The manufacturer field lists Eaton - Electronics Division. Its product description is FUSE CERM 25A 250VAC 125VDC 3AB. Review the specifications below when checking this part for your BOM.

Fuses specifications for BK/MDA-V-25A

• Description：FUSE CERM 25A 250VAC 125VDC 3AB
• Series：MDA
• Mfr：Eaton - Electronics Division
• Package：Bulk
• Mounting Type：Through Hole
• Fuse Type：Cartridge, Ceramic
• Current Rating (Amps)：25 A
• Voltage Rating - DC：125 V
• Response Time：Slow Blow
• Package / Case：3AB, 3AG, 1/4" x 1-1/4" (Axial)
• Breaking Capacity @ Rated Voltage：1.5kA AC, 10kA DC
• Melting I²t：667.9
• Approval Agency：CSA, UL
• Operating Temperature：-
• Color：Black
• Size / Dimension：0.266" Dia x 1.292" L (6.76mm x 32.82mm)
• Voltage Rating - AC：250 V

Fuses datasheet and documents for BK/MDA-V-25A
