BL-2835R650-20

Overview

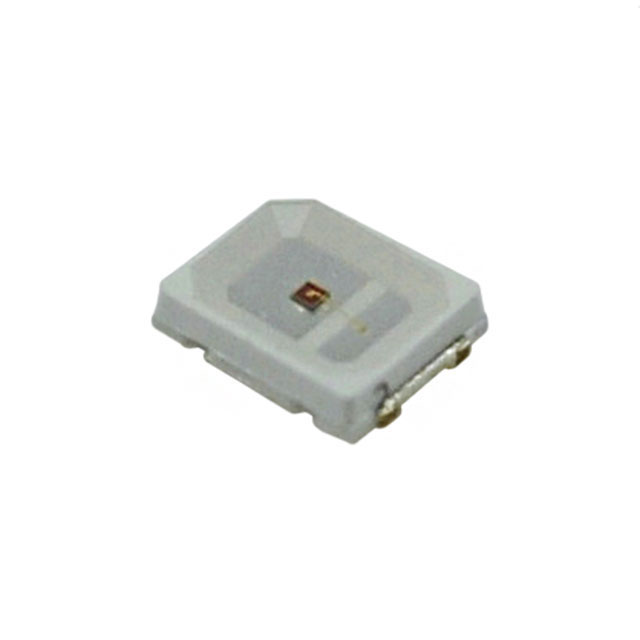

The BL-2835R650-20 is a single-color surface-mount LED manufactured by American Bright Optoelectronics Corporation. It features a red emission with a peak wavelength of 650 nm and utilizes a 2835 PLCC package. The component operates at a forward current of 150 mA with a power rating of 0.33 W. It delivers a luminous intensity of 3200 mcd and includes a clear lens for optical transmission.

Feature Summary

• Red light emission with a 650 nm peak wavelength
• High luminous intensity output of 3200 mcd
• Clear lens design for effective light transmission
• Standard 2835 PLCC surface-mount package

Applications

• Electronic device status indicators
• Panel illumination
• General-purpose signal indication

Procurement Notes

Verify the specific suffix (e.g., TR, CT) to confirm reel or cut-tape packaging requirements. Ensure compatibility with standard SMD reflow soldering profiles. Confirm that the 150 mA forward current aligns with the target circuit design constraints before finalizing procurement orders.

Selection Notes

Select this component when high-intensity red indication is required in a compact 2835 footprint. The 150 mA drive current supports brighter signaling compared to lower-current variants. Consider the clear lens option if maximum visibility is prioritized over diffusion effects.

Part Context

This part belongs to the American Bright Optoelectronics Corporation single-color LED portfolio. It is designed for surface-mount technology assembly processes. The 2835 form factor allows for dense PCB layout configurations while maintaining robust optical performance standards.

Replacement Considerations

Cross-reference with other 2835 red LEDs offering similar 650 nm wavelengths and comparable mcd ratings. Verify pinout compatibility and thermal management requirements for direct substitution in existing designs.
