BL-BBE3V1

Overview

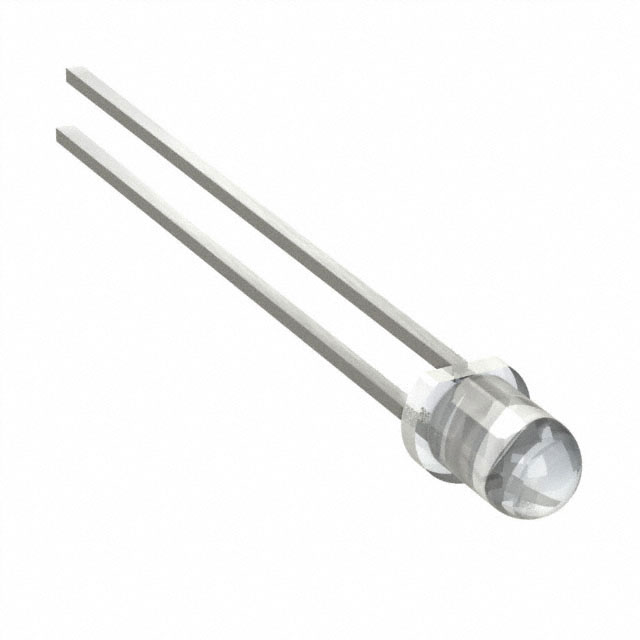

The BL-BBE3V1 is a single-color LED manufactured by American Bright Optoelectronics Corporation, designed for through-hole mounting in a T-1 (3 mm) package. It emits green light with a peak wavelength of 505 nm and features a water-clear dome lens. Key electrical parameters include a forward voltage of 3 V at a forward current of 20 mA, with a power rating of 110 mW. The component offers a high luminous intensity of 25,000 mcd and a viewing angle of 30 degrees. It operates within a temperature range of -40°C to +85°C and complies with RoHS standards.

Feature Summary

• High-intensity green emission optimized for visibility
• Water-clear dome lens for focused light output
• Standard T-1 3mm radial lead frame construction

Applications

• Panel indicator lights
• Test equipment status displays
• Consumer appliance signaling

Procurement Notes

Verify the specific datasheet revision for the BL-BBE3V1 to confirm exact binning classifications and spectral consistency. Ensure that the procurement documentation explicitly references the American Bright Optoelectronics Corporation manufacturer designation to avoid confusion with similar T-1 packages from other suppliers. Cross-reference the RoHS compliance status with current regulatory requirements for the target market.

Selection Notes

Select this component when a standard 3mm through-hole green LED with high brightness is required. The 30-degree viewing angle provides directional illumination suitable for panel-mounted indicators. Consider the 3 V forward voltage drop for circuit design compatibility with common logic levels. Verify thermal management requirements if operating near the maximum rated temperature.

Part Context

This part belongs to the standard single-color LED family from American Bright Optoelectronics Corporation. It utilizes conventional T-1 packaging technology, distinguishing it from surface-mount or high-power COB variants. The product line focuses on general-purpose indication applications rather than specialized lighting or display matrix configurations.

Replacement Considerations

Consult official substitution lists for direct equivalents. Generic T-1 green LEDs may differ in luminous intensity or wavelength tolerance.
