BL-BGE1V4V-AT

Overview

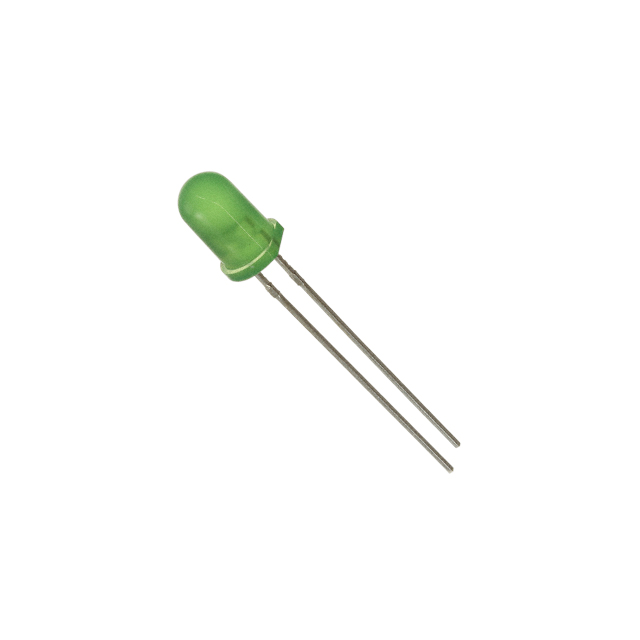

The BL-BGE1V4V-AT is a discrete green LED indicator manufactured by American Bright Optoelectronics Corporation. It features a T-1 3/4 (5 mm) radial package with a round domed lens. The component emits light at a wavelength of 570 nm, classified as illumination green. Key electrical parameters include a typical forward voltage of 2V and a test current of 20 mA. The millicandela rating is specified at 150 mcd. The device operates within a minimum temperature range of -40°C.

Feature Summary

• Radial leaded construction in a standard 5mm T-1 3/4 package for through-hole mounting
• Green emission color with a round domed lens style for optimized light distribution
• Designed for general indication applications with standard forward voltage characteristics

Applications

• Panel status indicators
• Power supply visual feedback
• General electronic equipment signaling

Procurement Notes

Verify the specific datasheet version from American Bright Optoelectronics Corporation to confirm exact binning and optical intensity tolerances. Ensure compatibility with existing PCB footprints for the T-1 3/4 radial package. Cross-reference the forward voltage specifications against the target circuit design to guarantee proper current limiting resistor selection. Confirm moisture sensitivity level requirements for assembly processes.

Selection Notes

Select this component when a standard 5mm green indicator is required for through-hole assembly. The 150 mcd brightness suits visible status indication in ambient lighting conditions. Consider the 2V forward voltage drop when designing series resistor networks. Verify that the radial lead configuration aligns with the mechanical constraints of the enclosure or panel mount location.

Part Context

This part belongs to the discrete LED category within American Bright Optoelectronics Corporation's portfolio. It utilizes standard T-1 3/4 packaging common in legacy and industrial electronics. The green wavelength provides high visibility for operational states. The component represents a fundamental passive optoelectronic element used for binary state visualization in control systems.

Replacement Considerations

Consult official substitution lists from American Bright Optoelectronics Corporation for direct equivalents. Verify pinout compatibility and forward voltage similarity when considering generic 5mm green LEDs from other manufacturers. Ensure optical intensity meets minimum visibility requirements if substituting with different brands.
