BL-BGX3V1

Overview

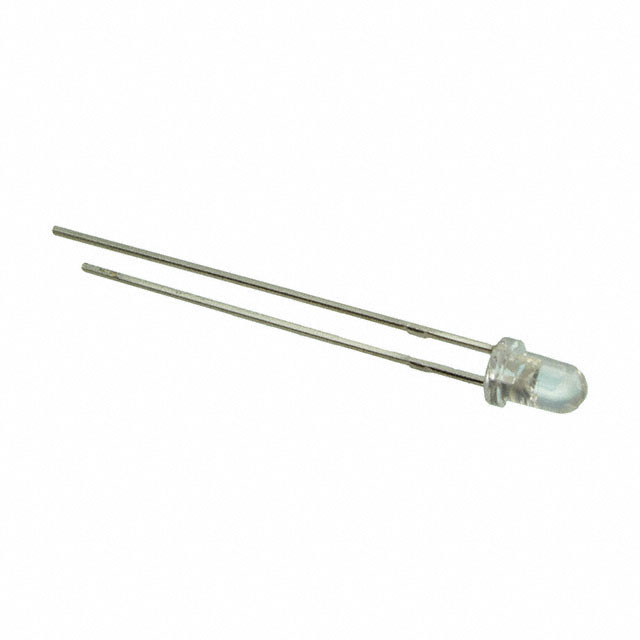

The BL-BGX3V1 is a single-color green LED manufactured by American Bright Optoelectronics Corporation. It utilizes a T-1 (3 mm) through-hole package with a dome-shaped, water-clear lens. The component emits light at a peak wavelength of 530 nm and provides a nominal luminous intensity of 25,000 mcd. Electrical characteristics include a forward voltage of 3 V at a forward current of 20 mA, with a power rating of 110 mW. It operates within a temperature range of -40 °C to +85 °C and features a 30-degree viewing angle.

Feature Summary

• High-intensity emission in the green spectrum for clear visibility
• Water-clear dome lens design for optimized light transmission
• Through-hole mounting configuration for standard PCB assembly

Applications

• Status indicators in consumer electronics
• Panel indicators in industrial equipment
• General-purpose visual signaling devices

Procurement Notes

Verify the specific manufacturer designation, as the model appears associated with multiple entities including American Bright LED and BRIGHT. Confirm RoHS compliance status and datasheet version before ordering. Ensure the supplier documentation matches the exact electrical parameters and physical dimensions required for your design integration.

Selection Notes

Select this component when high brightness is required for 3 mm through-hole applications. The 530 nm wavelength offers distinct visibility compared to standard green LEDs. Consider the 30-degree beam angle for directional lighting needs. Verify thermal management requirements against the 110 mW power rating for continuous operation.

Part Context

This part belongs to the single-color LED category from American Bright Optoelectronics Corporation. It is designed for general indication purposes using standard T-1 packaging. The product line focuses on reliable visible light emission for electronic circuit status monitoring.

Replacement Considerations

Cross-reference with other 3 mm green through-hole LEDs offering similar 530 nm wavelengths and 25,000 mcd intensity. Verify pinout compatibility and forward voltage tolerance before substituting.
