Product Detailed Parameters

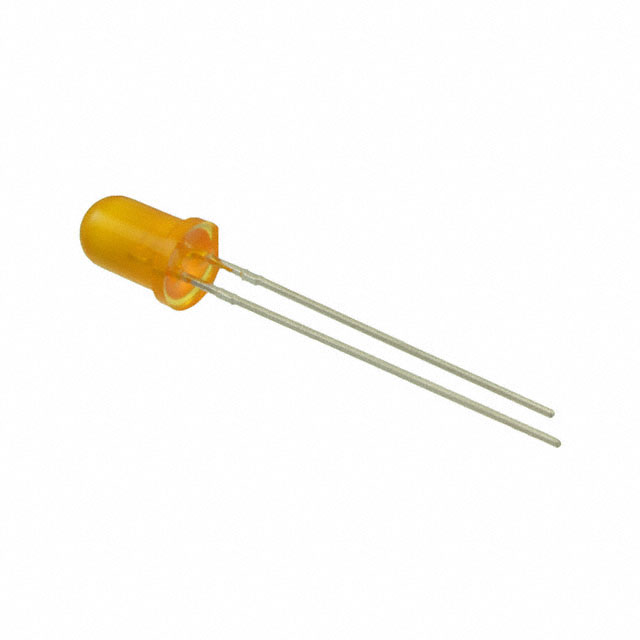

- Description：LED AMBER DIFFUSED 5MM T/H
- Series：-
- Mfr：American Bright Optoelectronics Corporation
- Package：Bulk
- Color：Amber
- Configuration：Standard
- Lens Color：Orange
- Lens Transparency：Diffused
- Millicandela Rating：700mcd
- Lens Style：Round with Domed Top
- Lens Size：5mm, T-1 3/4
- Voltage - Forward (Vf) (Typ)：2V
- Current - Test：20mA
- Viewing Angle：35°
- Mounting Type：Through Hole
- Wavelength - Dominant：606nm
- Wavelength - Peak：610nm
- Features：-
- Package / Case：Radial
- Supplier Device Package：5mm
- Size / Dimension：5.00mm Dia
- Height (Max)：10.20mm
- Grade：-
- Qualification：-
Download product information
Overview
The BL-BJC1V4V-AT is a single-color LED component manufactured by American Bright Optoelectronics Corporation. It emits white light and features a water clear lens configuration. The device utilizes a T-1 3/4 (5mm) radial mount package design. Key electrical parameters include a maximum forward current of 0.03 A and a nominal luminous intensity of 2500.0 mcd. The operational temperature range spans from -40 °C to 80 °C, with a total height of 8.7 mm.
Feature Summary
- Emits white light with high luminous intensity
- Water clear lens for optical clarity
- Radial mount construction for PCB integration
Applications
- Indicator lighting in electronic devices
- Panel status indication
- General illumination applications requiring compact form factor
Procurement Notes
Verify the manufacturer designation as American Bright Optoelectronics Corporation against official datasheets. Confirm the specific suffix '-AT' corresponds to the intended binning or packaging variant. Ensure compatibility with standard 5mm radial mounting holes on printed circuit boards. Cross-reference the thermal specifications with system operating conditions.
Selection Notes
Select this component for applications requiring a bright white indicator in a standard 5mm through-hole package. Consider the 0.03 A maximum forward current limit when designing drive circuits. Evaluate the 2500.0 mcd intensity against visibility requirements. Verify that the 8.7 mm height fits within mechanical constraints.
Part Context
This part belongs to the single-color LED category from American Bright Optoelectronics Corporation. It is designed for general-purpose signaling and indication tasks. The T-1 3/4 package size offers a balance between brightness and board space efficiency compared to smaller surface-mount alternatives.
Replacement Considerations
Consult official substitution guides for equivalent white LEDs in 5mm radial packages. Verify matching luminous intensity, forward current ratings, and lens color specifications before replacing.
