BL-BJE5V4V-AT

Overview

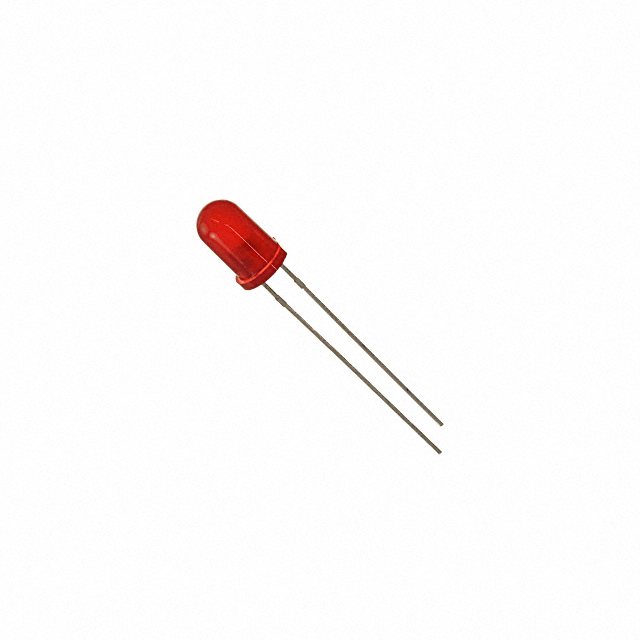

The BL-BJE5V4V-AT is a single-color orange-red LED from American Bright Optoelectronics Corporation. It features a T-1 (3 mm) radial package with a diffused lens and dome top. The component emits at a wavelength of 622 nm with a luminous intensity of 900 mcd. Electrical characteristics include a forward voltage of 2 V and a maximum operating temperature of +85 C. The minimum operating temperature is -40 C, and it operates within a standard through-hole configuration.

Feature Summary

• Emits orange-red light at 622 nm wavelength
• Features a diffused lens with a round domed top for wide viewing angles
• Designed for low power consumption applications
• Utilizes a durable T-1 3mm radial package

Applications

• Panel indicator lights
• Status indication in electronic devices
• Low-current lamp circuits

Procurement Notes

Verify the specific ordering suffix to ensure the correct lens appearance and electrical parameters match the design requirements. Confirm that the 3mm radial package dimensions align with the PCB footprint. Check RoHS compliance status if required by project specifications. Ensure the forward voltage rating is compatible with the driving circuitry to prevent damage.

Selection Notes

Select this component when an orange-red visual indicator is needed for panel mounting. The 3mm size offers a balance between visibility and space efficiency. Consider the 900 mcd intensity for adequate brightness in typical ambient lighting conditions. The wide operating temperature range supports use in various environmental conditions.

Part Context

This part belongs to the BL-B series of low-current LED lamps manufactured by American Bright Optoelectronics Corporation. The series focuses on discrete single-color indicators suitable for general-purpose electronics. The BL-BJE5V4V-AT specifically targets applications requiring orange-red illumination with standard radial lead configurations.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs before considering alternative sources.
