BL-BJU3V1

Overview

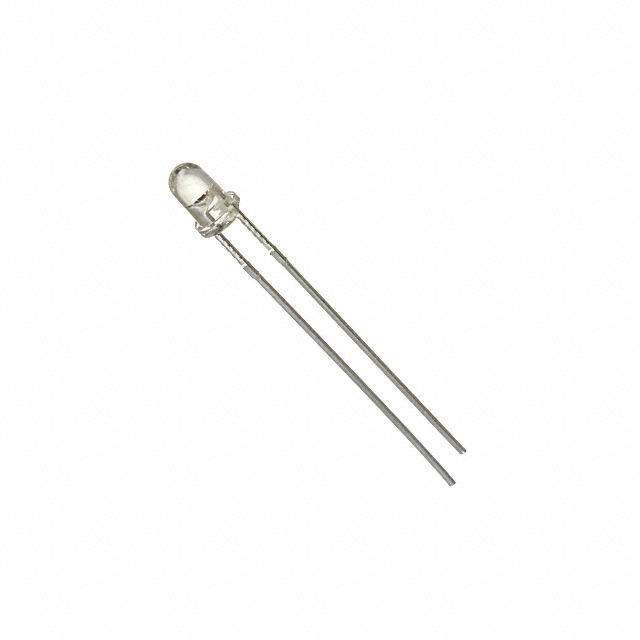

The BL-BJU3V1 is a single-color red-orange LED from American Bright Optoelectronics Corporation, featuring a T-1 (3mm) radial package with a water-clear dome lens. It emits light at a peak wavelength of 623nm with a luminous intensity of 18000 mcd. The component operates at a forward voltage of 2.2V and a forward current of 20mA. It supports a maximum operating temperature of +85°C and a minimum of -40°C.

Feature Summary

• Red-orange emission at 623nm wavelength
• Radial T-1 3mm package design
• Low voltage operation at 2.2V

Applications

• Discrete LED indication
• Circuit board status indicators
• Monitor front panels

Procurement Notes

Verify the RoHS compliance status directly with the manufacturer or authorized distributors, as supplier confirmation may vary. Confirm the standard lead time of approximately 12 weeks for production orders. Ensure that the specific datasheet version matches the required electrical characteristics for your circuit design before finalizing procurement.

Selection Notes

Select this component for applications requiring a distinct red-orange visual indicator with low forward voltage requirements. The 3mm radial form factor suits through-hole mounting on various circuit boards. Consider the 18000 mcd intensity for visibility needs and ensure the operating temperature range aligns with the environmental conditions of the target device.

Part Context

This part belongs to the American Bright Optoelectronics Corporation discrete LED portfolio, specifically within their single-color visible spectrum lineup. The BL-BJU3V1 utilizes standard T-1 packaging technology common in industrial and consumer electronics for reliable through-hole integration and consistent optical performance.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
