BL-BZX3V4V-1-B02

Overview

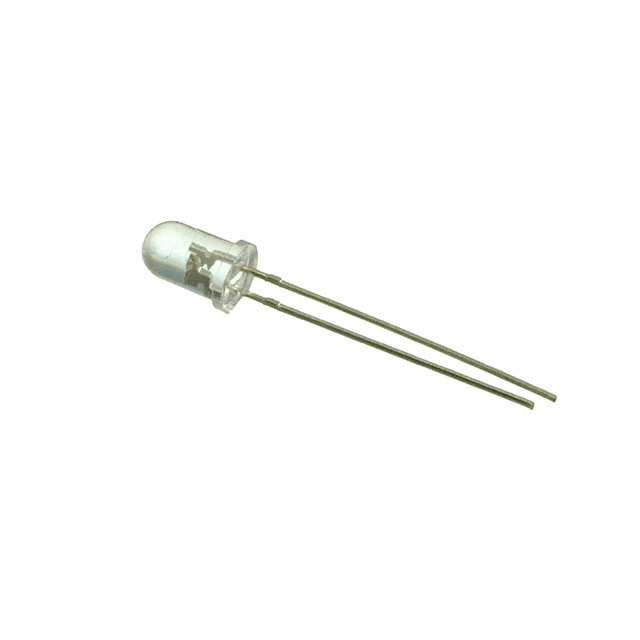

The BL-BZX3V4V-1-B02 is a single-color white LED manufactured by American Bright Optoelectronics Corporation. It features a water-clear lens and utilizes a T-1 3/4 (5mm) radial mount package. The device operates with a maximum forward current of 0.03 A and provides a nominal luminous intensity of 2500.0 mcd. Designed for through-hole installation, it functions within an operating temperature range of -40 °C to 80 °C. The component has a total height of 8.7 mm and includes two terminals.

Feature Summary

• Emits white light using a single-color configuration
• Features a water-clear lens for optical transmission
• Utilizes a T-1 3/4 5mm radial mount form factor

Applications

• Indicator lighting in electronic devices
• Panel status indication
• General-purpose visual signaling

Procurement Notes

Verify the manufacturer designation carefully, as initial records may list BRIGHT while official documentation attributes the part to American Bright Optoelectronics Corporation. Confirm the specific suffix matches the required electrical characteristics. Ensure the ordering specifications align with the T-1 3/4 package dimensions and radial lead configuration to prevent integration errors during assembly.

Selection Notes

Select this component when a standard 5mm through-hole white LED is required for indicator applications. The 2500 mcd intensity suits general visibility needs without excessive brightness. Verify that the 0.03 A maximum forward current rating fits the circuit design constraints. Ensure the operating temperature range meets the environmental requirements of the target application.

Part Context

This part belongs to the single-color LED category from American Bright Optoelectronics Corporation. It represents a standard discrete indicator component designed for board-level mounting. The T-1 3/4 package is a legacy size often used in equipment requiring robust, visible status signals. It serves as a fundamental optoelectronic element for basic illumination tasks.

Replacement Considerations

Substitute parts must match the 5mm T-1 3/4 radial package and white color output. Verify compatibility with the 0.03 A current limit and 2500 mcd intensity. Ensure the replacement supports the same voltage drop and thermal operating range.
