Product Detailed Parameters
- Description：LED BLUE CLEAR 2PLCC SMD
- Series：-
- Mfr：American Bright Optoelectronics Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Blue
- Configuration：-
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：300mcd
- Lens Style：Oval with Flat Top
- Lens Size：-
- Voltage - Forward (Vf) (Typ)：3.3V
- Current - Test：20mA
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：465nm
- Wavelength - Peak：470nm
- Features：-
- Package / Case：2-SMD, J-Lead
- Supplier Device Package：2-PLCC
- Size / Dimension：3.00mm L x 2.00mm W
- Height (Max)：1.50mm
- Grade：-
- Qualification：-
Download product information
Overview

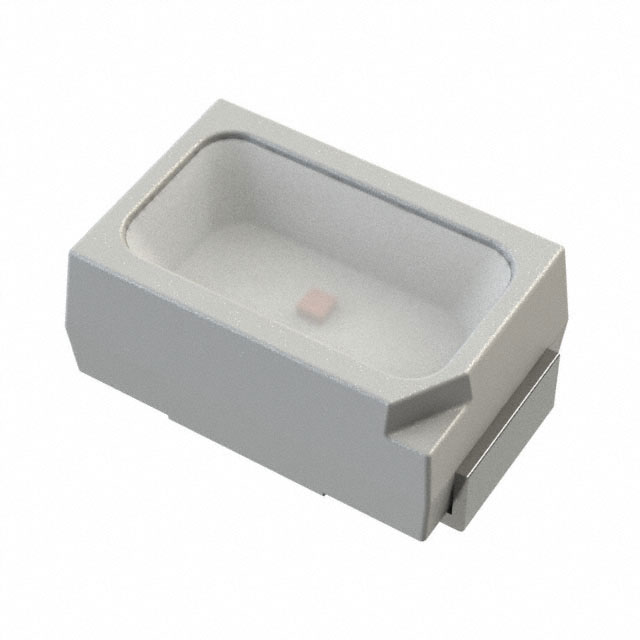

The BL-HB332Y is a high-brightness, blue-colored single-color LED manufactured by American Bright Optoelectronics Corporation. It utilizes a 3020 PLCC2 package with a ceramic base and clear lens transparency. The component features an oval lens style with a flat top design. Typical forward voltage is 3.3V at a test current of 20mA. The millicandela rating is specified at 300mcd. Physical dimensions include a length of 3.00mm, width of 1.90mm, and height of 1.30mm.
Feature Summary
- High-brightness blue light emission
- PLCC2 surface mount package configuration
- Ceramic-based construction for thermal stability
Applications
- Panel indicator lighting
- Status indication in electronic devices
- Backlighting applications requiring blue illumination
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct binning and wavelength selection. Confirm that the requested part number matches the exact package type and luminous intensity requirements for the target application before finalizing procurement orders.
Selection Notes
Select this component when a compact blue indicator is required for space-constrained designs. The PLCC2 form factor allows for standard SMT assembly processes. Ensure the circuit design accommodates the typical 3.3V forward voltage drop and 20mA operating current to maintain optimal brightness and longevity without exceeding absolute maximum ratings.
Part Context
This component belongs to the American Bright Optoelectronics Corporation LED portfolio, which focuses on reliable optoelectronic solutions. The BL-HB332Y represents a specific variant within their high-brightness series, utilizing established ceramic packaging technology common in their industrial and commercial product lines.
Replacement Considerations
Consult official cross-reference lists from American Bright Optoelectronics Corporation for verified substitutes. Generic equivalents may differ in luminous intensity or spectral distribution; verify compatibility with existing board layouts and electrical constraints before substitution.
