BL-HB535A-TRB

Overview

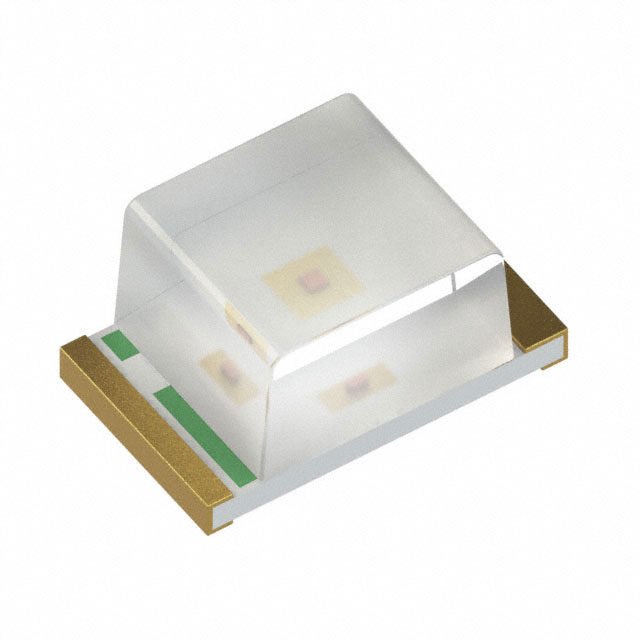

The BL-HB535A-TRB is a single-color surface-mount LED manufactured by American Bright Optoelectronics Corporation. It utilizes a standard 0603 (1608 metric) package with dimensions of 1.60 mm in length, 0.80 mm in width, and 0.80 mm in height. The device emits super blue light with a peak wavelength of 470 nm. It features a water-clear lens and is designed for compatibility with infrared and vapor phase reflow soldering processes as well as automatic placement equipment.

Feature Summary

• Compatible with all SMT assembly methods
• Water-clear lens appearance
• RoHS compliant construction

Applications

• Status indicators in consumer electronics
• Status indicators in industrial electronics
• General use lighting applications

Procurement Notes

Verify the manufacturer designation carefully, as some listings may attribute this component to BRIGHT rather than American Bright Optoelectronics Corporation. Confirm that the specific part number corresponds to the 0603 package size and super blue emission characteristics. Ensure compliance requirements match project specifications regarding RoHS standards and lead-free soldering compatibility.

Selection Notes

Select this component when a compact 0603 form factor is required for super blue indication. The standard package ensures compatibility with existing automated pick-and-place infrastructure. Verify that the forward current and voltage ratings align with the target circuit design before integration into the final assembly process.

Part Context

This component belongs to the BL-Hx series of SMD standard LEDs from American Bright Optoelectronics Corporation. These devices are engineered for high-volume manufacturing environments requiring reliable surface-mount technology integration. The series supports various colors and package sizes while maintaining consistent mechanical and electrical performance standards across the product line.

Replacement Considerations

The BL-HB536D-TRB serves as a confirmed substitute within the same manufacturer portfolio. Both components share identical 0603 package dimensions and mechanical specifications. The primary distinction lies in the emitted color, with the replacement offering super blue output similar to the original part.
