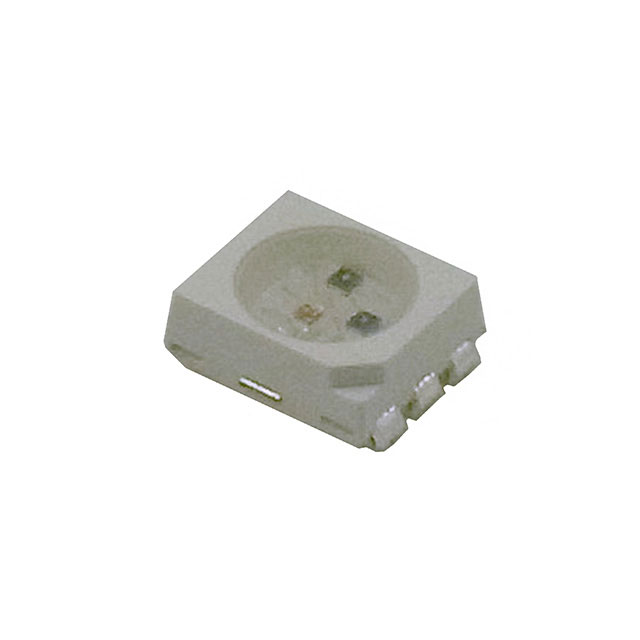

BL-HBGGAJA32N

Description：LED RGB CLEAR 3528 SMD
Series：-
Mfr：American Bright Optoelectronics Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e098f806143b Category: LED Indication - Discrete Brand: American Bright Optoelectronics Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED RGB CLEAR 3528 SMD
Series：-
Mfr：American Bright Optoelectronics Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red, Green, Blue (RGB)
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：900mcd Red, 220mcd Green, 400mcd Blue
Lens Style：Round with Flat Top
Lens Size：-
Voltage - Forward (Vf) (Typ)：2V Red, 3V Green, 3.3V Blue
Current - Test：20mA Red, 20mA Green, 20mA Blue
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：625nm Red, 525nm Green, 465nm Blue
Wavelength - Peak：630nm Red, 530nm Green, 470nm Blue
Features：-
Package / Case：6-SMD, J-Lead
Supplier Device Package：-
Size / Dimension：3.50mm L x 2.80mm W
Height (Max)：1.40mm
Grade：-
Qualification：-

Download product information

BL-HBGGAJA32N

Overview

The BL-HBGGAJA32N is a surface-mount RGB LED indicator manufactured by American Bright Optoelectronics Corporation. It integrates Red, Green, and Blue chips within a single package to produce multi-color output. The component features a round lens with a flat top design and a colorless lens material. Electrical characteristics include a forward voltage of 2V for the red channel and 3V for both green and blue channels. Optical specifications define peak wavelengths at 625nm for red, 525nm for green, and 465nm for blue.

Feature Summary

Integrates red, green, and blue light-emitting diodes in a single surface-mount package
Features a round lens with a flat top configuration
Utilizes a colorless lens material

Applications

Fiber optic communication systems
Display technologies
Medical imaging equipment
Industrial automation

Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to confirm exact electrical tolerances and binning classifications. Ensure that the ordering information matches the required wavelength and voltage specifications for the intended circuit design. Cross-reference datasheet revisions to maintain compliance with current manufacturing standards.

Selection Notes

Select this component based on its integrated RGB capability and specific optical wavelength requirements. Evaluate the surface-mount form factor against available board space constraints. Confirm compatibility with the target application's voltage levels, noting the distinct forward voltages for each color channel within the device structure.

Part Context

This discrete LED indicator belongs to the American Bright Optoelectronics Corporation product line focused on high-quality optoelectronic components. The manufacturer specializes in providing reliable global sources for various LED configurations. This specific model represents their surface-mount technology offerings designed for compact electronic assemblies.
