BL-HBGJAGRM132N-EP

Overview

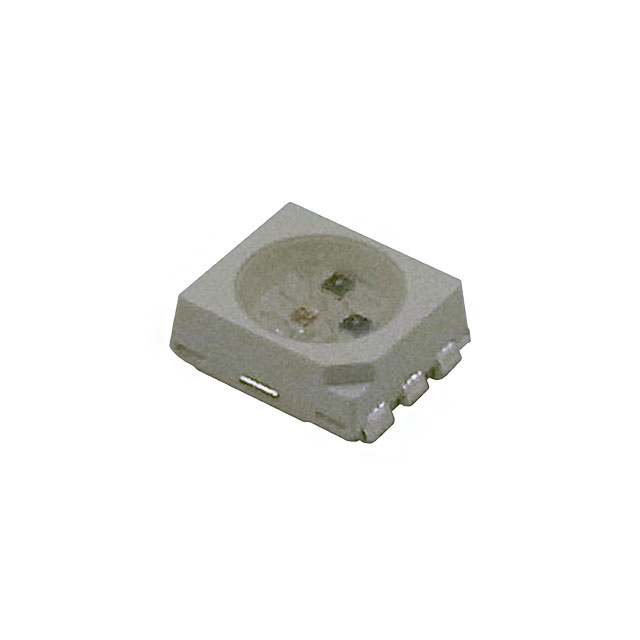

The BL-HBGJAGRM132N-EP is a multi-color surface mount LED from American Bright Optoelectronics Corporation, housed in a 3528 PLCC-6 package. It integrates red, green, and blue chips with an infrared emitter within a single rectangular component. The device features a 120-degree viewing angle and operates within a temperature range of -40°C to +85°C. Typical forward voltages are specified as 2V for red, 3.1V for green, and 3.2V for blue. Luminous intensity values vary by color, reaching up to 2200 mcd.

Feature Summary

• Integrates red, green, blue, and infrared emitters in a compact SMD form factor
• Provides a wide 120-degree viewing angle for broad illumination coverage
• Compatible with standard IR reflow and TTW soldering processes
• Qualified according to JEDEC moisture sensitivity Level 2 standards

Applications

• Multi-color status indication in electronic devices
• Decorative lighting and visual signaling systems
• Consumer electronics indicator panels
• Automotive interior lighting applications

Procurement Notes

Verify the specific binning codes for luminous intensity and forward voltage requirements during procurement. Confirm that the lead-free status aligns with project specifications, as datasheets may indicate compliance variations. Ensure storage conditions meet JEDEC Level 2 moisture sensitivity requirements to prevent package damage before soldering. Cross-reference the exact package dimensions with PCB footprint designs to guarantee mechanical fit.

Selection Notes

Select this component when a single package must provide distinct red, green, blue, and infrared outputs. Consider the 3528 PLCC-6 dimensions for space-constrained designs requiring high brightness. Evaluate the thermal management capabilities given the operating temperature limits. Compare against single-color alternatives if separate control lines are not feasible or if mixed-color generation is required from one physical location.

Part Context

This part belongs to the American Bright Optoelectronics Corporation discrete LED portfolio. It utilizes InGaN technology for efficient light emission across multiple wavelengths. The manufacturer specializes in surface mount optoelectronic components designed for high-volume manufacturing. This specific model represents a multi-functional solution replacing multiple individual LEDs in assembly processes.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and electrical characteristics carefully when considering alternative multi-color SMD LEDs from other manufacturers.
