Overview

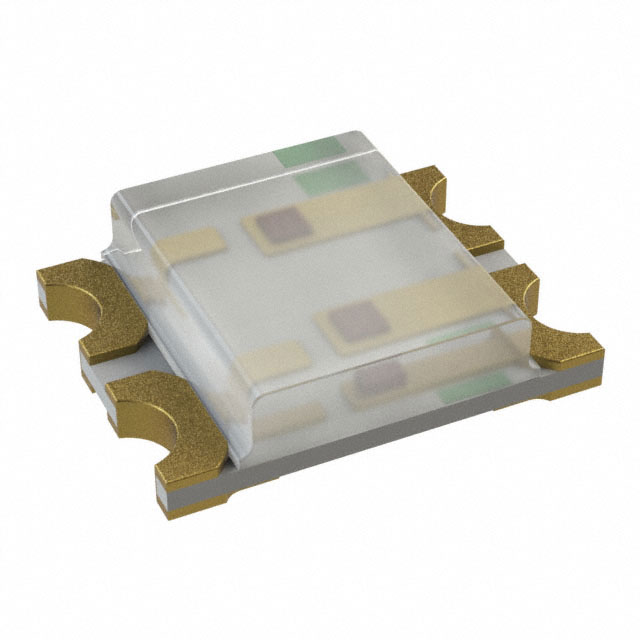

BL-HGEJE36H-TRB is a surface mount dual color LED lamp manufactured by American Bright Optoelectronics Corporation. The component features a top-emitting design with a water clear lens appearance and operates as a mono-color type device. It utilizes a standard 0603 package measuring 1.60 x 0.80 mm with a height of 0.40 mm. The unit is RoHS compliant and supports infrared and vapor phase reflow soldering processes, ensuring compatibility with automatic placement equipment.

Feature Summary

• Dual color configuration with separate elements for distinct optical outputs
• Water clear lens material providing defined light emission characteristics
• Standard 0603 surface mount package suitable for automated assembly lines
• Compatibility with both infrared and vapor phase reflow soldering methods

Applications

• Status indicators in consumer electronic devices
• Backlight illumination for mobile phone keypads
• Indicator lights on notebook computer chassis
• Visual signaling components in network equipment

Procurement Notes

Verify the specific supplier source to ensure authenticity, as the component is listed under multiple manufacturer names including Yellow Stone Corp and Abracon in various databases. Confirm that the ordering suffix matches the required tape and reel packaging specification. Cross-reference the part number against official distributor catalogs to validate current availability and compliance status before finalizing purchase orders.

Selection Notes

Select this component when a compact dual color indicator is required for space-constrained printed circuit boards. The 0603 footprint allows for high-density mounting alongside other surface mount devices. Ensure the application environment supports the specified operating temperature range and that the water clear lens meets the visual clarity requirements for the intended display interface.

Part Context

The BL-HGEJE36H-TRB belongs to the series of surface mount dual color LED lamps produced by American Bright Optoelectronics Corporation. This series includes various configurations such as single color and tri-color variants, all sharing common package dimensions and assembly compatibility. The product line is designed to meet the demands of modern electronics manufacturing with standardized footprints and reliable performance metrics.

Replacement Considerations

Direct substitutes include BL-HGEJE36H from Yellow Stone Corp and BL-HGEJE36H-TRB from American Bright OPTOELE. Verify pinout compatibility and spectral output alignment before integration.
