Product Detailed Parameters
- Description：LED GREEN CLEAR 520NM SMD
- Series：-
- Mfr：American Bright Optoelectronics Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Green
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：210mcd
- Lens Style：Rectangle with Flat Top
- Lens Size：1.00mm x 0.60mm
- Voltage - Forward (Vf) (Typ)：2.8V
- Current - Test：5mA
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：528nm
- Wavelength - Peak：520nm
- Features：-
- Package / Case：-
- Supplier Device Package：-
- Size / Dimension：1.70mm L x 0.60mm W
- Height (Max)：1.20mm
- Grade：-
- Qualification：-
Download product information
Overview

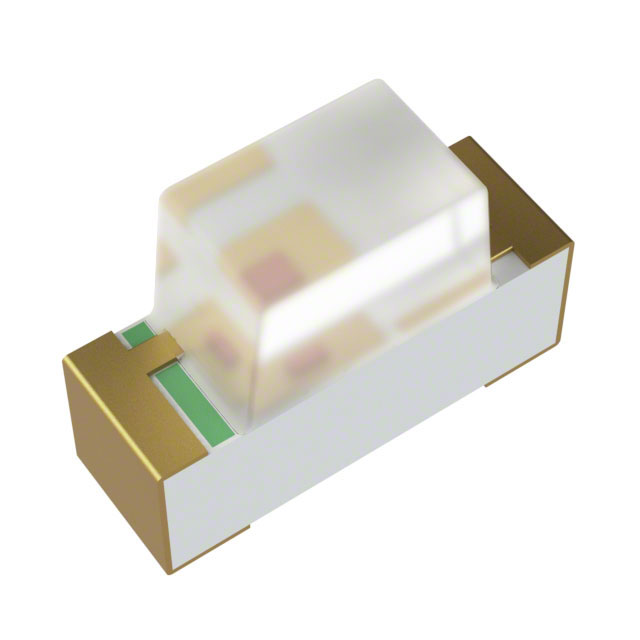

The BL-HGK38E-TRC-Q is a surface-mount single-color LED manufactured by American Bright Optoelectronics Corporation. It features an emerald green emission with a peak wavelength of 520nm and a typical forward voltage of 2.8V at a test current of 5mA. The component has a luminous intensity of 210mcd and a wide viewing angle of 120 degrees. Its physical dimensions are 1.7mm in length, 0.6mm in width, and 1.1mm in height, housed in a rectangular package with a clear lens. The device operates within a temperature range of -40°C to +85°C.
Feature Summary
- Compact surface-mount design suitable for space-constrained applications
- Wide 120-degree viewing angle for broad visibility
- Clear lens construction for efficient light transmission
Applications
- General electronic equipment status indication
- Panel indicator lights for consumer devices
- Embedded system activity signaling
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to ensure exact electrical and mechanical specifications match project requirements. Confirm that the lead-free status aligns with environmental compliance standards. Cross-reference the datasheet parameters for forward voltage and luminous intensity to validate performance expectations for the intended application environment.
Selection Notes
Select this component when a low-profile, high-brightness green indicator is required for surface-mount assembly processes. Consider the 120-degree viewing angle and 210mcd intensity for visibility needs. Ensure the operating temperature range meets the environmental conditions of the final product. Evaluate the compact 1.7x0.6mm footprint against available PCB real estate constraints.
Part Context
This discrete LED belongs to the American Bright Optoelectronics Corporation portfolio of surface-mount optoelectronic components. It is designed for integration into various electronic assemblies requiring visual feedback. The part number structure indicates specific packaging and binning characteristics defined by the manufacturer for quality control and supply chain management.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided source data. Consult the manufacturer for direct equivalents or cross-reference compatible components based on matching electrical and mechanical specifications.
