BL-HJ739R-TRB

Overview

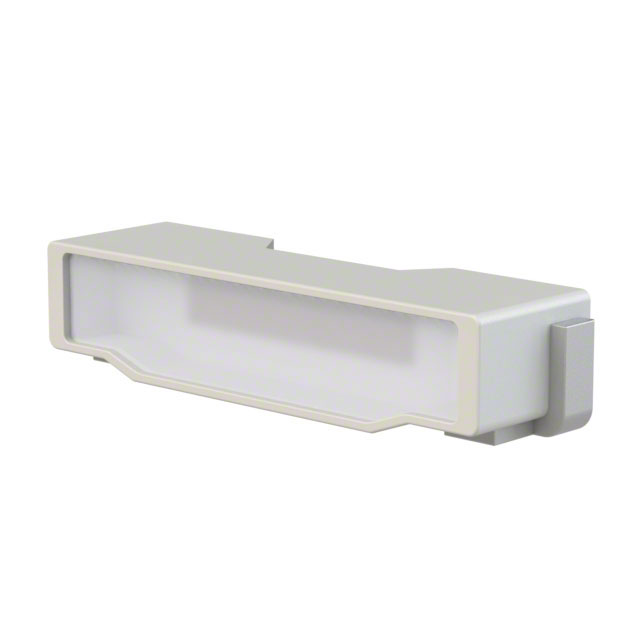

The BL-HJ739R-TRB is a discrete red LED indicator manufactured by American Bright Optoelectronics Corporation. It features a dominant wavelength of 624nm and operates with a forward voltage of 2V. The component utilizes a 2-SMD, J-Lead package configuration, specifically identified as SMD3535-2P. The lens material is water clear, ensuring optimal light transmission for the red emission.

Feature Summary

• Red color emission at 624nm
• Water clear lens design
• SMD3535-2P J-Lead package

Applications

• General purpose indication
• Electronic status signaling
• Panel mount indicators

Procurement Notes

Verify the specific datasheet version from American Bright Optoelectronics Corporation to confirm current manufacturing status and detailed electrical characteristics. Ensure compatibility with standard surface-mount assembly processes for the J-Lead package type before procurement.

Selection Notes

Select this component when a compact red indicator with a J-Lead footprint is required. The 624nm wavelength provides distinct visibility. Confirm that the 2V forward voltage aligns with the target circuit drive capabilities and thermal management requirements for the application environment.

Part Context

This part belongs to the discrete LED indicator category within American Bright's portfolio. It serves as a visual signal source in electronic assemblies. The J-Lead form factor offers specific mechanical retention advantages compared to standard gull-wing packages in certain PCB layouts.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify pinout and dimensional tolerances if considering alternative manufacturers for the SMD3535-2P form factor.
