Product Detailed Parameters
- Description：LED ORANGE-RED/GRN/BLUE CLR SMD
- Series：-
- Mfr：American Bright Optoelectronics Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Orange-Red, Green, Blue
- Configuration：Common Anode
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：35mcd Orange-Red, 317mcd Green, 42mcd Blue
- Lens Style：Rectangle with Flat Top
- Lens Size：1.50mm x 1.00mm
- Voltage - Forward (Vf) (Typ)：2V Orange-Red, 2.8V Green, 2.8V Blue
- Current - Test：20mA Orange-Red, 20mA Green, 20mA Blue
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：620nm Orange-Red, 528nm Green, 470nm Blue
- Wavelength - Peak：630nm Orange-Red, 520nm Green, 470nm Blue
- Features：-
- Package / Case：0606 (1616 Metric)
- Supplier Device Package：-
- Size / Dimension：1.60mm L x 1.50mm W
- Height (Max)：0.70mm
- Grade：-
- Qualification：-
Download product information
Overview

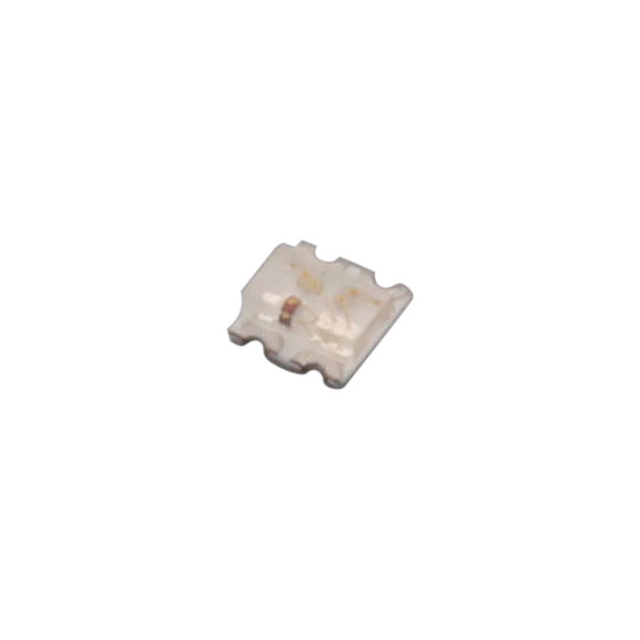

The BL-HJEGKB536E-TRB-Q is a multi-color RGB LED manufactured by American Bright Optoelectronics Corporation. It utilizes a 0605 (1615 metric) surface-mount package with a rectangular, water-clear lens. The component emits red light at 625 nm, green at 535 nm, and blue at 475 nm. Forward voltages are specified as 2 V for the red channel and 2.8 V for both green and blue channels. Maximum forward current is rated at 20 mA per color. Power ratings are 50 mW for red and 70 mW for green and blue. The device offers a 120-degree viewing angle.
Feature Summary
- Integrated tri-color RGB configuration within a compact 0605 SMD footprint
- Water-clear rectangular lens design for optimized light transmission
- Compatible with standard infrared and vapor phase reflow soldering processes
Applications
- Status indicators in consumer electronics
- Backlighting for LCD displays and keypads
- Industrial electronic signaling devices
Procurement Notes
Verify the specific suffix -Q against the manufacturer's official datasheet to confirm if it denotes a particular binning, packaging variation, or environmental compliance status. Ensure the ordering part number matches the exact electrical parameters required for the target circuit design. Cross-reference the RoHS compliance documentation provided by American Bright Optoelectronics Corporation prior to final procurement decisions.
Selection Notes
Select this component when a single-package solution for red, green, and blue illumination is required in space-constrained designs. The 0605 form factor supports automated surface-mount assembly. Consider the distinct forward voltage differences between the red (2 V) and blue/green (2.8 V) channels when designing current-limiting resistor networks for each individual color channel.
Part Context
This part belongs to the American Bright Optoelectronics Corporation RGB LED portfolio, specifically utilizing the 0605 (1615 metric) package size. It is designed for applications requiring mixed-color output from a single surface-mount location. The product line emphasizes compatibility with standard SMT assembly methods and reflow soldering profiles.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Verify pinout compatibility and thermal characteristics before considering alternative manufacturers.
