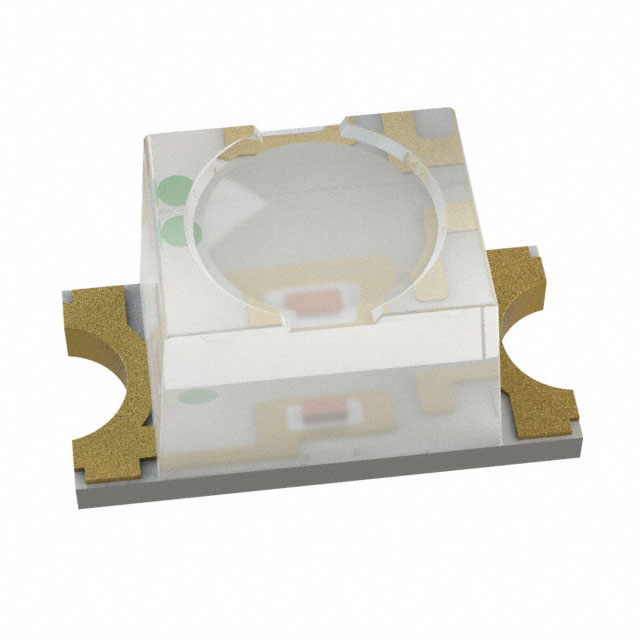

BL-HJEKC36J-TRB

$0.51

Description：LED ORANGE-RED/YL CLR 0605 SMD
Series：-
Mfr：American Bright Optoelectronics Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3586c9d0a885 Category: LED Indication - Discrete Brand: American Bright Optoelectronics Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED ORANGE-RED/YL CLR 0605 SMD
Series：-
Mfr：American Bright Optoelectronics Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Orange-Red, Yellow
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：120mcd Orange-Red, 120mcd Yellow
Lens Style：Rectangle with Flat Top
Lens Size：1.50mm x 1.00mm
Voltage - Forward (Vf) (Typ)：2.2V Orange-Red, 2.2V Yellow
Current - Test：20mA Orange-Red, 20mA Yellow
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：620nm Orange-Red, 589nm Yellow
Wavelength - Peak：625nm Orange-Red, 590nm Yellow
Features：-
Package / Case：0606 (1616 Metric)
Supplier Device Package：605
Size / Dimension：1.60mm L x 1.50mm W
Height (Max)：0.65mm
Grade：-
Qualification：-

Download product information

BL-HJEKC36J-TRB

Overview

The BL-HJEKC36J-TRB is a bi-color surface-mount LED manufactured by American Bright Optoelectronics Corporation. It features a 0605 (1608 metric) package with a water-clear rectangular lens and a 120-degree viewing angle. The component emits orange-red and yellow light, with peak wavelengths at 625 nm and 594 nm respectively. Key electrical parameters include a forward current of 20 mA, forward voltages of 2 V and 2.8 V, and power ratings of 50 mW and 70 mW for the respective colors.

Feature Summary

Bi-color configuration enabling dual-wavelength emission in a single compact package
Water-clear rectangular lens design providing a wide 120-degree viewing angle
Surface-mount technology construction optimized for automated assembly processes

Applications

Status indication in electronic devices requiring distinct color coding
Indicator lights for multi-state operational feedback systems
Visual signaling components in consumer electronics interfaces

Procurement Notes

Verify the specific binning requirements for luminous intensity and wavelength consistency against project specifications. Confirm that the 0605 package dimensions align with the designated PCB footprint. Ensure thermal management considerations are addressed given the power ratings associated with each color channel during operation.

Selection Notes

Select this component when a dual-color indicator is required within strict spatial constraints defined by the 0605 form factor. Consider the specific voltage drops of 2 V and 2.8 V for circuit design compatibility. Evaluate the 120-degree viewing angle to ensure adequate visibility for the intended application environment.

Part Context

This part belongs to the top-emitting SMT LED series from American Bright Optoelectronics. It utilizes standard surface-mount packaging technologies suitable for high-volume manufacturing. The bi-color capability allows for simplified bill-of-materials compared to using two separate single-color LEDs.
