Product Detailed Parameters
- Description：LED RGB CLEAR 5050 SMD
- Series：-
- Mfr：American Bright Optoelectronics Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red, Green, Blue (RGB)
- Configuration：Independent
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：900mcd Red, 1300mcd Green, 190mcd Blue
- Lens Style：Round with Flat Top
- Lens Size：-
- Voltage - Forward (Vf) (Typ)：2V Red, 3.1V Green, 3.1V Blue
- Current - Test：20mA Red, 20mA Green, 20mA Blue
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：625nm Red, 525nm Green, 470nm Blue
- Wavelength - Peak：620nm Red, 525nm Green, 470nm Blue
- Features：-
- Package / Case：6-SMD, J-Lead
- Supplier Device Package：-
- Size / Dimension：5.00mm L x 5.00mm W
- Height (Max)：1.40mm
- Grade：-
- Qualification：-
Download product information
Overview

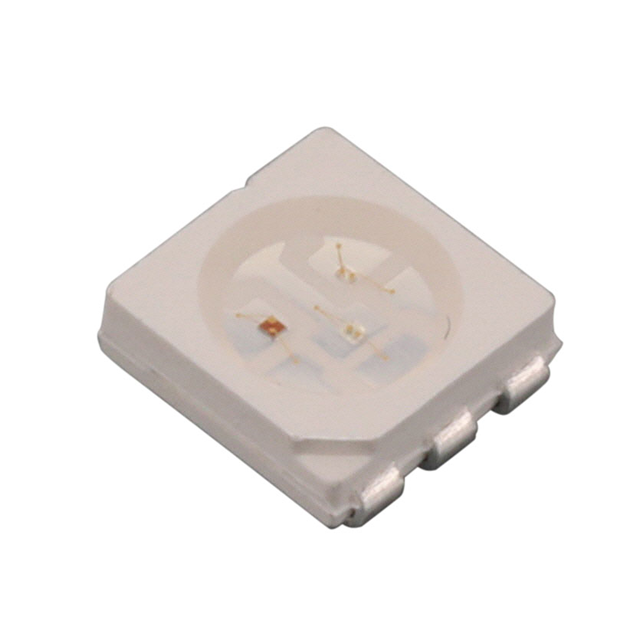

The BL-HJLG6BH32L is a surface-mount RGB LED from American Bright Optoelectronics Corporation. It utilizes a 5050 (2020 metric) PLCC package with a water-clear, round flat lens. The component emits red light at 620 nm, green at 525 nm, and blue at 470 nm. Electrical characteristics include a forward current of 20 mA per color channel. Forward voltages are specified as 2 V for the red channel and 3.1 V for both green and blue channels. Power ratings are 75 mW for red and 120 mW for green and blue. The device offers a 120-degree viewing angle.
Feature Summary
- Integrates three distinct primary color chips within a single compact SMD housing to enable full-color mixing capabilities.
Applications
- Architectural accent lighting
- Decorative indicator illumination
- Consumer electronics status displays
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct binning and wavelength selection. Confirm that the required RoHS compliance status matches project specifications. Cross-reference the datasheet for any updates regarding thermal management requirements or soldering profiles suitable for the 5050 package type.
Selection Notes
Select this component when a standard multi-color solution is preferred over individually addressable ICs. The 5050 footprint allows for dense placement on PCBs. Consider the specific forward voltage differences between the red and blue/green channels when designing constant current driver circuits to ensure balanced brightness output across all colors.
Part Context
This part belongs to the American Bright Optoelectronics Corporation RGB LED portfolio. These components are designed for general indication and decorative lighting applications where color mixing is required without complex digital control interfaces. The PLCC form factor provides mechanical stability and standardized mounting dimensions for automated assembly processes.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation.
