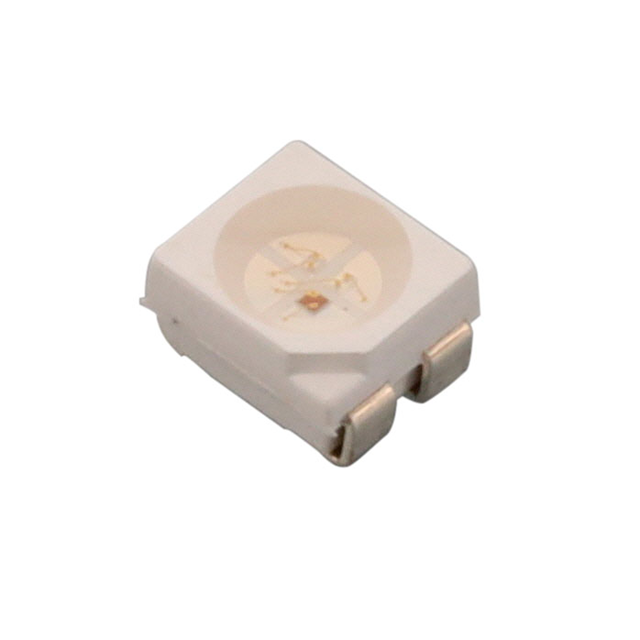

BL-HJLG6BH32M-A
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：LED RGB CLEAR 3528 SMD
- Series：-
- Mfr：American Bright Optoelectronics Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red, Green, Blue (RGB)
- Configuration：Common Anode
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：1200mcd Red, 1500mcd Green, 300mcd Blue
- Lens Style：Round with Flat Top
- Lens Size：-
- Voltage - Forward (Vf) (Typ)：2V Red, 3.2V Green, 3.2V Blue
- Current - Test：20mA Red, 20mA Green, 20mA Blue
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：625nm Red, 525nm Green, 468nm Blue
- Wavelength - Peak：630nm Red, 530nm Green, 470nm Blue
- Features：-
- Package / Case：4-PLCC
- Supplier Device Package：-
- Size / Dimension：3.20mm L x 2.80mm W
- Height (Max)：2.10mm
- Grade：-
- Qualification：-
Download product information
Overview
The BL-HJLG6BH32M-A is a surface-mount RGB LED in a 3528 PLCC4 package. It features a common anode configuration with clear colorless lens transparency. Typical forward voltages are 2V for red, and 3.2V for green and blue channels. The test current for all colors is 20mA. The component offers a wide viewing angle of 120 degrees. It is designed for compatibility with infrared and vapor phase reflow soldering processes.
Feature Summary
- Tri-color RGB output within a single compact SMD package
- Common anode electrical configuration
- Clear lens transparency for optimal light transmission
- Wide 120-degree viewing angle
Applications
- Backlighting for electronic displays
- Status indication in consumer electronics
- Decorative lighting modules
- General-purpose indicator applications
Procurement Notes
Verify the specific suffix 'A' against manufacturer documentation to confirm availability and exact specifications. Confirm that the common anode configuration matches your circuit design requirements. Ensure compatibility with standard reflow soldering profiles before integration into production assemblies.
Selection Notes
Select this component when a compact RGB solution is required for space-constrained designs. The 3528 package size suits automated placement equipment. Verify voltage drop characteristics across red and blue/green channels to ensure proper current limiting resistor selection for balanced color mixing.
Part Context
This part belongs to the American Bright Optoelectronics Corporation BL-Hx series of standard SMD LEDs. These components are engineered for high reliability and consistent performance in mass-produced electronic devices. The series supports various mounting configurations suitable for modern PCB manufacturing techniques.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other 3528 PLCC4 RGB common anode LEDs only after verifying pinout compatibility and thermal characteristics.
