BL-HJX32A

Overview

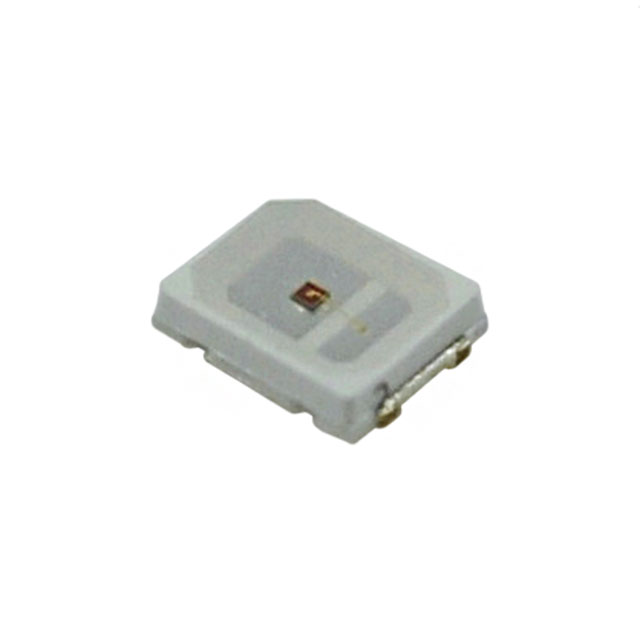

The BL-HJX32A is a discrete surface-mount LED manufactured by American Bright Optoelectronics Corporation. It features a red emission with a wavelength of 630 nm and a forward voltage of 2V. The component utilizes a 1411 (3528 metric) package, also described as 2835 PLCC2 or 1210 (3225 metric) in various listings. It operates at a test current of 20mA and is designed for standard SMD/SMT mounting applications.

Feature Summary

• Red light emission at 630 nm wavelength
• Standard 2V forward voltage operation
• SMD/SMT surface mount construction

Applications

• Panel indicator lights
• Status indication modules
• General electronic equipment signaling

Procurement Notes

Verify the exact package designation against the latest manufacturer datasheet, as sources list both 1411 (3528 metric) and 1210 (3225 metric). Confirm RoHS compliance status directly with the supplier. Ensure the specific bin selection matches the required color consistency for your assembly requirements before placing orders.

Selection Notes

Select this component for applications requiring a standard red visual indicator in a compact surface-mount form factor. Consider the 2V forward voltage drop when designing the driving circuitry. Verify thermal management capabilities if operating near maximum ratings. Compare physical dimensions against PCB footprint constraints to ensure proper placement.

Part Context

This part belongs to the American Bright Optoelectronics discrete LED portfolio. It is categorized under red LEDs within the company's general-purpose lighting and indication range. The series supports various surface-mount configurations for industrial and consumer electronics manufacturing.

Replacement Considerations

Cross-reference with other 3528 or 3225 package red LEDs from different manufacturers if supply is constrained. Ensure identical pinout and spectral characteristics for direct substitution.
