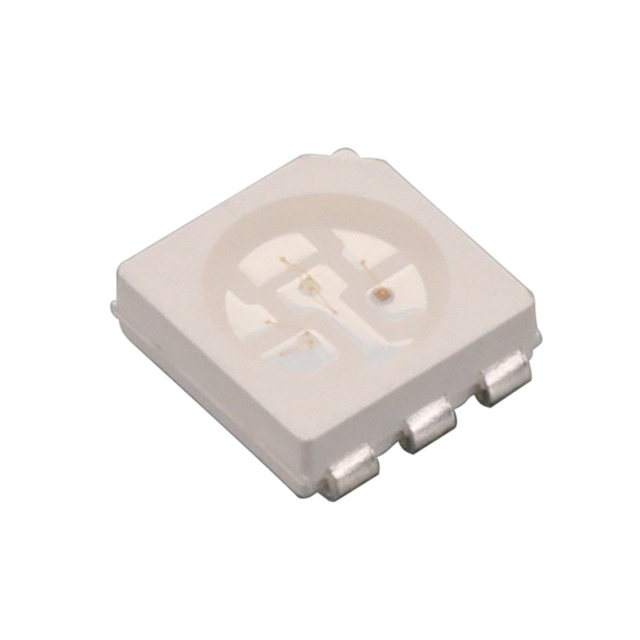

BL-HJXGXBX32L
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：LED RGB CLEAR 5050 SMD
- Series：-
- Mfr：American Bright Optoelectronics Corporation
- Package：Tape & Reel (TR)
- Color：Red, Green, Blue (RGB)
- Configuration：Independent
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：800mcd Red, 1900mcd Green, 400mcd Blue
- Lens Style：Round with Flat Top
- Lens Size：-
- Voltage - Forward (Vf) (Typ)：2V Red, 3V Green, 3.1V Blue
- Current - Test：20mA Red, 20mA Green, 20mA Blue
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：625nm Red, 525nm Green, 465nm Blue
- Wavelength - Peak：630nm Red, 520nm Green, 470nm Blue
- Features：-
- Package / Case：6-SMD, J-Lead
- Supplier Device Package：-
- Size / Dimension：5.00mm L x 5.00mm W
- Height (Max)：1.60mm
- Grade：-
- Qualification：-
Download product information
Overview
The BL-HJXGXBX32L is a multi-color RGB LED manufactured by American Bright Optoelectronics Corporation. It utilizes a surface-mount PLCC6 package with dimensions of 1411 (3528 metric). The component emits red, green, and blue light at peak wavelengths of 630 nm, 530 nm, and 475 nm, respectively. Electrical characteristics include a forward current rating of 20 mA and forward voltages of 2 V for the red channel and 3 V for the green and blue channels. Power ratings are specified as 75 mW for red and 110 mW for green and blue. The device features a water-clear lens with a round flat shape and provides a 120-degree viewing angle.
Feature Summary
- Integrates red, green, and blue emitters within a single compact surface-mount package
- Features a water-clear lens with a round flat shape for consistent optical output
- Supports standard SMD/SMT installation processes
Applications
- RGB backlighting for electronic displays
- Decorative lighting systems requiring color mixing
- Status indicators in consumer electronics
Procurement Notes
Verify the exact suffix against the manufacturer's official documentation to confirm specific binning or wavelength tolerances. Ensure that the ordering information matches the required electrical parameters and package type. Cross-reference the datasheet for moisture sensitivity levels and soldering recommendations to guarantee reliability during assembly.
Selection Notes
Select this component when a compact RGB solution is required for surface-mount applications. Consider the 120-degree viewing angle and specific peak wavelengths for color accuracy requirements. Evaluate the power ratings and forward voltage specifications to ensure compatibility with the driving circuit design and thermal management strategy.
Part Context
This part belongs to the American Bright Optoelectronics Corporation RGB LED portfolio. It is designed for applications requiring full-color capability in a small form factor. The PLCC6 package allows for automated placement, making it suitable for high-volume manufacturing environments where space constraints and color performance are critical factors.
Replacement Considerations
Consult the manufacturer's official substitution guide for verified alternatives. Generic RGB LEDs may differ in luminous intensity, viewing angle, or forward voltage characteristics. Verify pinout compatibility and thermal performance before implementing any substitute components.
