BL-HJXGXBX32M-D

Overview

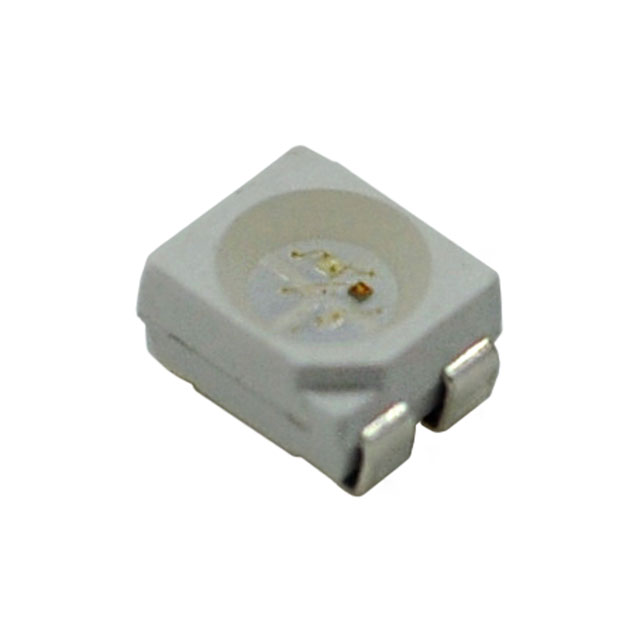

The BL-HJXGXBX32M-D is a tri-color RGB surface mount LED from American Bright Optoelectronics Corporation. It utilizes a 3528 PLCC-4 package with a colorless, clear lens. The component integrates Red (630 nm), Green (530 nm), and Blue (475 nm) chips in a common anode configuration. Rated specifications include a forward current of 20 mA per color, with forward voltages of 2 V for Red and 3 V for Green and Blue. Power ratings are 75 mW for Red and 110 mW for Green and Blue. Luminous intensity is specified at 800 mcd for Red, 2000 mcd for Green, and 350 mcd for Blue.

Feature Summary

• Tri-color RGB integration within a compact 3528 SMD form factor
• Common anode electrical architecture for simplified circuit design
• High brightness output with distinct intensity ratings per color channel
• Water-clear lens material ensuring optimal light transmission

Applications

• Backlighting for electronic displays and indicators
• Decorative lighting and ambient illumination systems
• Status indication in consumer electronics devices
• General-purpose signaling in industrial control panels

Procurement Notes

Verify the specific datasheet version to confirm exact binning classifications for luminous intensity and chromaticity coordinates. Ensure that the common anode pinout matches the target PCB footprint design. Confirm RoHS compliance status as regulatory requirements may vary by production batch or region. Cross-reference the supplier's official documentation for any updates on moisture sensitivity levels or soldering profile recommendations.

Selection Notes

Select this component when a single-package solution for full-color mixing is required without discrete LED placement. The common anode structure reduces the number of control lines compared to common cathode variants. Evaluate the 120-degree viewing angle against optical system requirements. Consider the thermal dissipation capabilities of the 3528 package for continuous operation scenarios.

Part Context

This part belongs to the American Bright Optoelectronics Corporation RGB LED series, specifically designed for surface mount technology. It shares the physical dimensions and pin configuration with other 3528 PLCC-4 LEDs but differs in internal chip composition and electrical characteristics. The product line focuses on providing high-brightness multi-color options for modern electronic manufacturing.

Replacement Considerations

Direct substitutes must match the 3528 PLCC-4 package, common anode configuration, and similar spectral wavelengths. Verify that alternative components meet the same forward voltage and current ratings to ensure circuit compatibility.
