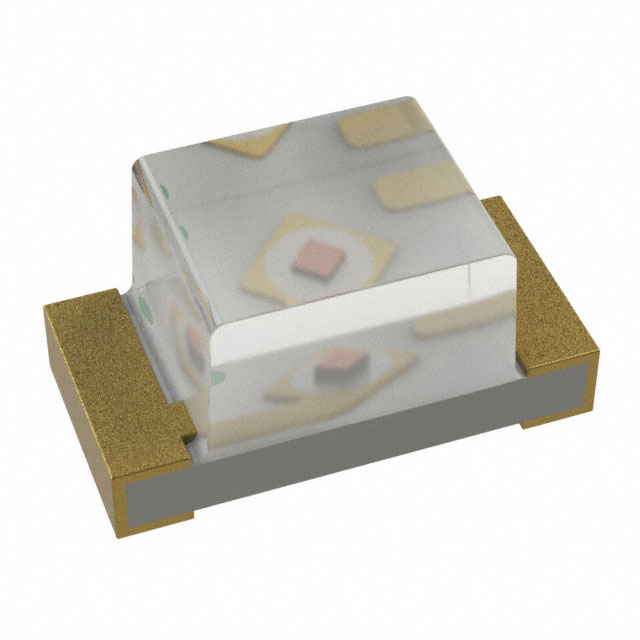

BL-HKC36D-AV-TRB
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：LED YELLOW CLEAR 0603 SMD
- Series：-
- Mfr：American Bright Optoelectronics Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Yellow
- Configuration：-
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：120mcd
- Lens Style：Rectangle with Flat Top
- Lens Size：0.87mm x 0.80mm
- Voltage - Forward (Vf) (Typ)：2V
- Current - Test：20mA
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：589nm
- Wavelength - Peak：590nm
- Features：-
- Package / Case：0603 (1608 Metric)
- Supplier Device Package：603
- Size / Dimension：1.60mm L x 0.80mm W
- Height (Max)：0.85mm
- Grade：-
- Qualification：-
Download product information
Overview
The BL-HKC36D-AV-TRB is a single-color surface-mount LED manufactured by American Bright Optoelectronics Corporation. It emits yellow light with a peak wavelength of 594 nm and features a colorless, water-clear rectangular lens. The component utilizes a 0603 (1608 metric) package for SMD/SMT installation. Key electrical parameters include a forward current of 20 mA, a forward voltage of 2 V, and a power rating of 100 mW. The device offers a luminous intensity of 120 mcd and is supplied in a reel or cut tape format.
Feature Summary
- Emits monochromatic yellow light at a 594 nm peak wavelength
- Features a water-clear, colorless rectangular lens design
- Compatible with standard SMT assembly processes
- Complies with RoHS environmental standards
Applications
- Status indicators for consumer electronics
- Panel illumination for industrial equipment
- General-purpose visual signaling devices
Procurement Notes
Verify the manufacturer part number BL-HKC36D-AV-TRB against official American Bright Optoelectronics Corporation documentation to confirm specifications. Ensure compatibility with 0603 footprint requirements and check for RoHS compliance status prior to integration. Confirm packaging type availability matches production needs.
Selection Notes
Select this component when a compact 0603 yellow indicator is required. The 594 nm wavelength provides distinct visibility. Consider the 120 mcd intensity for adequate brightness in standard applications. Verify that the 2 V forward voltage aligns with the circuit drive capabilities and thermal management constraints.
Part Context
This part belongs to the BL-HKC series of surface-mount LEDs from American Bright Optoelectronics Corporation. The series includes various colors and package sizes. The AV suffix typically denotes specific binning or lens characteristics. This model represents a standard yellow variant within the company's discrete LED portfolio.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided source material. Cross-reference with other 0603 yellow LEDs only if electrical parameters match exactly.
