BL-HUB33H-AV-TRB

Overview

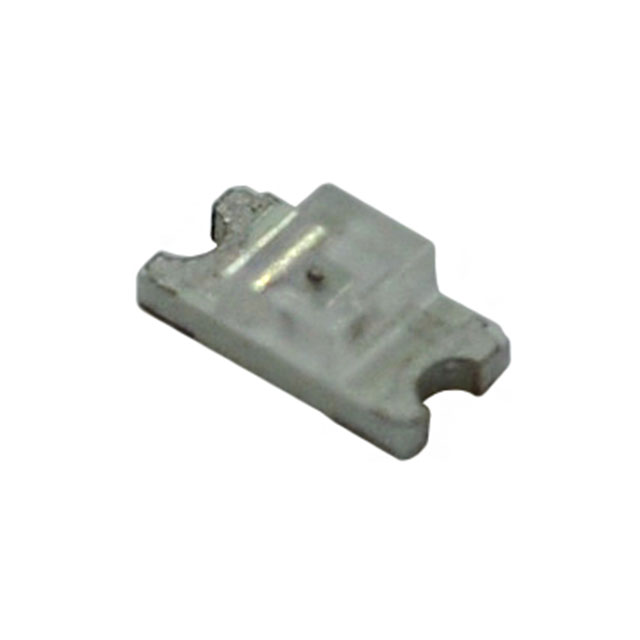

The BL-HUB33H-AV-TRB is a single-color surface-mount LED manufactured by American Bright Optoelectronics Corporation. It features a 1206 (3215 metric) rectangular package with a water-clear lens. The device emits red light at a peak wavelength of 637 nm. Key electrical parameters include a forward voltage of 2 V and a forward current rating of 20 mA, with a power dissipation limit of 80 mW. The component offers a luminous intensity of 55 mcd and is supplied in tape and reel packaging for automated SMT assembly.

Feature Summary

• Utilizes a low-profile 1206 rectangular surface-mount package design
• Emits monochromatic red light through a water-clear lens
• Compatible with standard infrared and vapor phase reflow soldering processes

Applications

• Status indication in electronic equipment
• Panel indicator lights
• Automated surface mount assembly lines

Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm exact spectral characteristics and packaging details. Ensure that ordering suffixes such as AV and TRB are correctly interpreted according to the supplier's catalog definitions. Cross-reference RoHS compliance status and lead times directly with authorized distributors prior to procurement.

Selection Notes

Select this component when a compact red indicator is required for space-constrained printed circuit board layouts. The 1206 form factor provides a balance between visibility and footprint efficiency. Consider the 637 nm peak wavelength for applications requiring distinct red signaling without additional filtering. Verify thermal management requirements against the 80 mW power rating during operation.

Part Context

This component belongs to the BL-HUB series of single-color LEDs from American Bright Optoelectronics Corporation. The series utilizes standard SMD packages optimized for high-volume manufacturing. The BL-HUB33H variant specifically denotes the red emission color within this product line, distinguishing it from other spectral options available in the same physical package family.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data.
