BL-HUB34E-AV-TRB

Overview

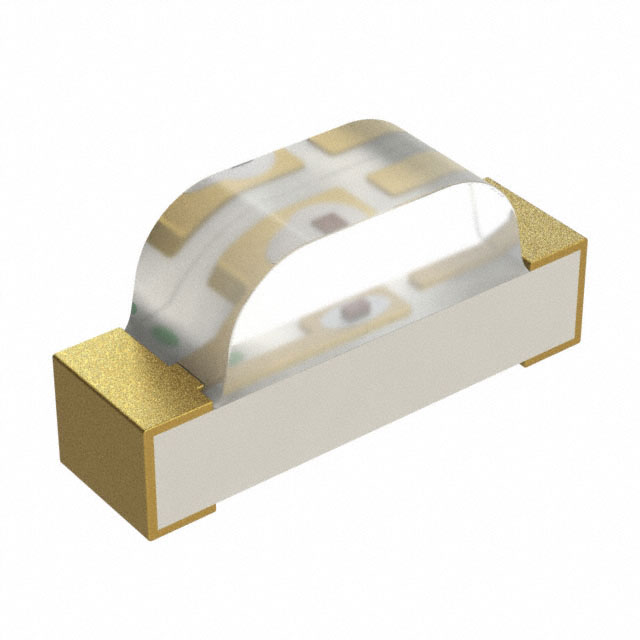

The BL-HUB34E-AV-TRB is a surface-mount red LED from American Bright Optoelectronics Corporation. It features a 0802 (2106 metric) package with dimensions of 2.1mm length, 1.0mm width, and 0.6mm height. The device emits super red light at a wavelength of 637 nm. Key electrical parameters include a forward voltage of 2 V and a power rating of 80 mW. The lens is water clear with a rectangular shape.

Feature Summary

• Compact 0802 surface-mount form factor for space-constrained designs
• Super red emission with water clear rectangular lens
• Standard SMD/SMT mounting style

Applications

• Panel indicator lights
• Electronic status indication
• Consumer electronics displays

Procurement Notes

Verify the specific datasheet version to confirm exact binning classifications and optical intensity tolerances. Ensure PCB footprint matches the 2.1x1.0mm outline. Confirm RoHS compliance status through official manufacturer documentation prior to integration.

Selection Notes

Select this component for applications requiring a low-profile red indicator in an 0802 package. Consider the 2 V forward voltage drop when designing drive circuits. Verify thermal management requirements against the 80 mW power rating for sustained operation.

Part Context

This part belongs to the American Bright Optoelectronics Corporation discrete LED portfolio. It is designed as a single-color surface-mount indicator. The product line focuses on standard metric packages like 0802 for general-purpose electronic signaling.

Replacement Considerations

Cross-reference with other 0802 red LEDs from American Bright or compatible manufacturers. Ensure identical package dimensions (2.1x1.0x0.6mm) and similar wavelength specifications for direct mechanical and optical substitution.
