BL-HUBGE33B-TRB

Overview

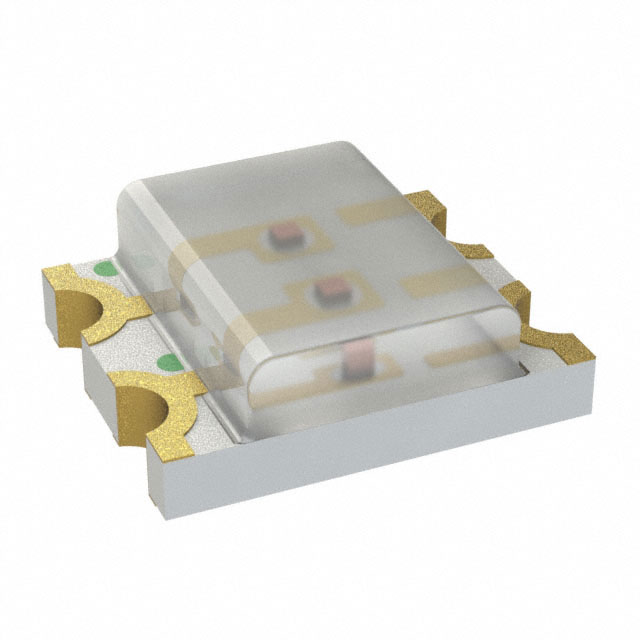

The BL-HUBGE33B-TRB is a dual-emission surface-mount LED manufactured by American Bright Optoelectronics Corporation. It utilizes AlGaInP/GaAs technology to emit red and green-yellow light within a water-clear lens. The component features a 1210 (3225 metric) package with dimensions of 3.20mm length, 2.70mm width, and a maximum height of 1.30mm. Designed for standard SMD assembly methods, it supports infrared and vapor phase reflow soldering processes.

Feature Summary

• Dual-color emission capability combining red and green-yellow wavelengths in a single package
• Water-clear lens design for optimal light transmission
• Compatible with automated placement equipment and standard reflow soldering processes

Applications

• Status indicators for consumer electronics
• Status indicators for industrial electronics
• Effortless identification of critical states in control panels

Procurement Notes

Verify the specific binning requirements for the red and green-yellow intensity ratios against your design specifications before procurement. Confirm that the 1210 package footprint aligns with your PCB layout constraints. Ensure compatibility with your chosen reflow soldering profile, as the device supports both infrared and vapor phase methods. Check moisture sensitivity levels if storage conditions exceed recommended limits.

Selection Notes

Select this component when a compact dual-indication solution is required to save board space compared to separate single-color LEDs. The 1210 package offers a balance between visibility and size for general-purpose status signaling. Consider the forward voltage characteristics of both emitters during circuit design to ensure proper current limiting. Verify that the water-clear lens meets the aesthetic or optical requirements of the final enclosure.

Part Context

This part belongs to the BL-Hx series of standard SMD LEDs from American Bright Optoelectronics Corporation. Established in 1995, the manufacturer provides global LED solutions. The BL-HUBGE33B-TRB specifically addresses applications needing distinct color coding without increasing component count. It represents a standard offering in their portfolio for reliable, responsive optoelectronic components.

Replacement Considerations

Direct substitutes must match the 1210 package, dual-emission functionality, and similar spectral outputs. Verify pinout compatibility and thermal characteristics if replacing with parts from other manufacturers. Ensure any alternative maintains RoHS compliance and similar mounting tolerances for automated assembly.
