BL-HUF33J-AV-TRB

Overview

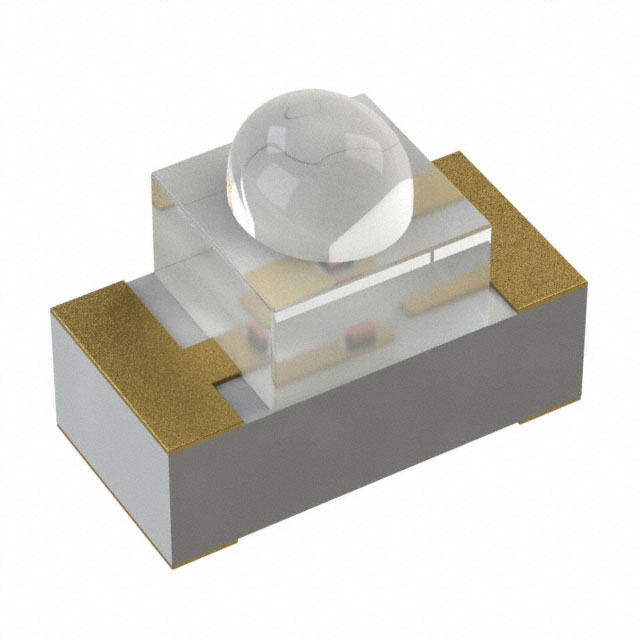

The BL-HUF33J-AV-TRB is a single-color red LED from American Bright Optoelectronics Corporation, designed for surface-mount technology (SMT) applications. It features a 1206 (3215 metric) package with a rectangular, water-clear lens. The component emits light at a peak wavelength of 645 nm and provides an optical intensity of 55 mcd when driven at a forward current of 20 mA. The typical forward voltage is 2 V, with a power rating of 80 mW. It is supplied in cut tape or reel packaging.

Feature Summary

• Compact 1206 surface-mount form factor suitable for space-constrained designs
• Water-clear rectangular lens for consistent light transmission
• Bin sorted output for uniform color and intensity performance

Applications

• General indicator lighting on electronic circuit boards
• Status indication in consumer electronics devices
• Panel indicators requiring low-profile SMD components

Procurement Notes

Verify the specific bin sorting requirements against your design specifications to ensure color consistency. Confirm that the 1206 package dimensions align with your PCB footprint. Check the datasheet for thermal management guidelines related to the 80 mW power rating during operation.

Selection Notes

Select this component when a standard red indicator is needed in a 1206 package. Consider the 645 nm wavelength for visibility requirements. Ensure the 20 mA forward current capability matches your drive circuit constraints. Compare with similar models like BL-HUB33Q-AV-TRB if different binning or slight wavelength variations are acceptable.

Part Context

This part belongs to the American Bright Optoelectronics Corporation single-color LED family. It is distinct from other variants such as the BL-HJE37A-AV-TRB (0402 package) or BL-HUB33Q-AV-TRB (637 nm wavelength). The AV suffix typically denotes specific binning or lens characteristics within their product line.

Replacement Considerations

Direct substitutes include BL-HUB33Q-AV-TRB, which shares the 1206 package but differs in peak wavelength (637 nm vs. 645 nm). Ensure electrical parameters remain compatible before substitution.
