BL-XGE361-TR8

Overview

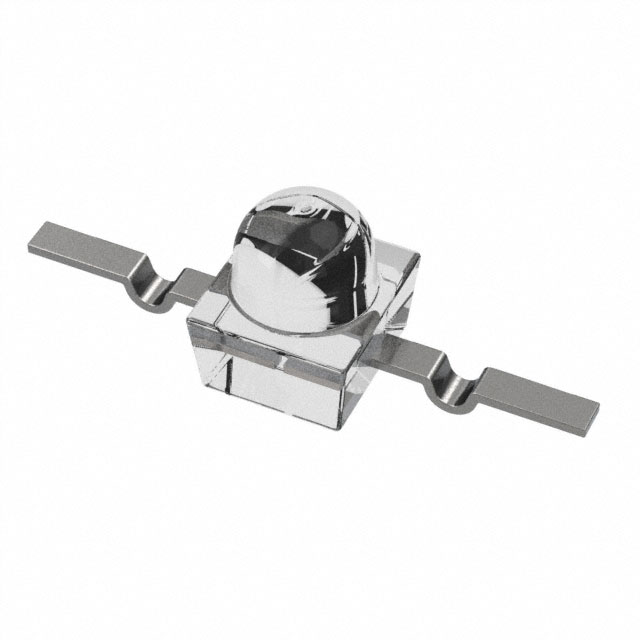

The BL-XGE361-TR8 is a surface-mount LED from American Bright Optoelectronics Corporation. It emits super yellow-green light with a peak wavelength of 570 nm and dominant wavelength of 571 nm. The component utilizes a clear, colorless domed lens within a 2-SMD Yoke Bend package measuring 2.16 mm by 2.34 mm. Electrical characteristics include a forward voltage of 2 V at a forward current of 20 mA. The device operates within a temperature range of -40 °C to +85 °C.

Feature Summary

• Emits super yellow-green light with precise wavelength specifications for high visibility.
• Features a water-clear domed lens to optimize light transmission and viewing angle.
• Designed for surface mount assembly using a compact 2-SMD Yoke Bend form factor.

Applications

• Industrial equipment status indication
• General purpose electronic device signaling
• Control panel visual feedback

Procurement Notes

Verify the specific datasheet version provided by the manufacturer or authorized distributor to confirm electrical tolerances and thermal resistance values. Ensure that the ordering suffix matches the required tape and reel configuration for automated assembly processes. Cross-reference the package dimensions against the target PCB footprint to guarantee mechanical compatibility during installation.

Selection Notes

Select this component when a bright yellow-green indicator is required for surface-mounted designs. The low forward voltage allows for efficient operation in low-power circuits. Consider the wide operating temperature range for environments subject to thermal fluctuations. Evaluate the luminous intensity requirements against the specific application visibility needs before finalizing the part choice.

Part Context

This model belongs to the American Bright Optoelectronics Corporation discrete LED portfolio. It represents a standard single-color indicator solution designed for reliability in commercial and industrial sectors. The product line emphasizes consistent optical performance and robust construction suitable for mass production environments requiring precise color matching.

Replacement Considerations

Consult official substitution guides for equivalent yellow-green SMD LEDs. Verify pinout compatibility and forward voltage alignment before replacing the original component. Ensure that any substitute maintains the same package outline dimensions to fit existing footprints without modification.
