BL-XUB361-TR9

Overview

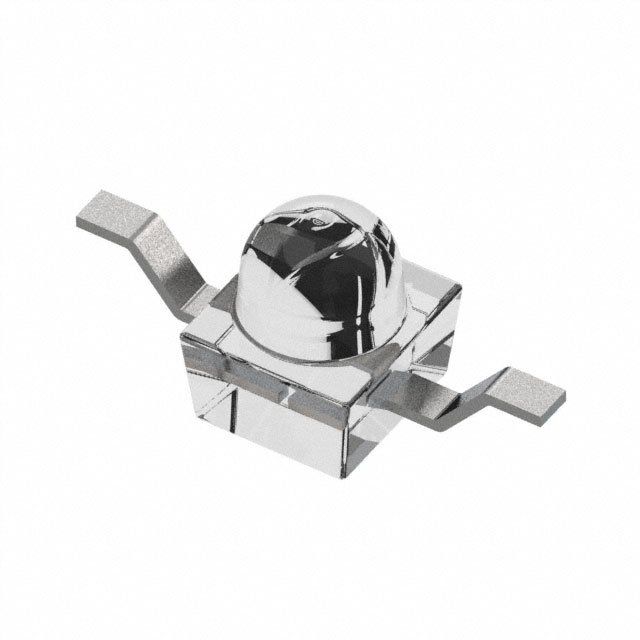

The BL-XUB361-TR9 is a discrete surface-mount LED manufactured by American Bright Optoelectronics Corporation. It features a Z-Bend package configuration designed for board-edge illumination or specific optical alignment requirements. The component emits red-orange light with a peak wavelength of 632 nm and operates at a standard forward voltage of approximately 2.1 V. It utilizes a water-clear lens to maximize light transmission efficiency while maintaining durability in industrial environments.

Feature Summary

• Z-Bend lead configuration for specialized mounting
• Water-clear lens for high luminous intensity
• Red-orange emission spectrum optimized for visibility

Applications

• Board edge indicator lighting
• Industrial equipment status indication
• Data center display signaling

Procurement Notes

Verify the exact datasheet version from American Bright Optoelectronics Corporation before integration. Confirm that the Z-Bend form factor aligns with your PCB footprint design. Ensure thermal management strategies account for the specific forward current ratings provided in the official documentation to maintain long-term reliability.

Selection Notes

Select this component when a low-profile, side-emitting or edge-lit solution is required. The Z-Bend leads facilitate unique mechanical mounting options not available in standard axial or flat SMD packages. Consider the 632 nm wavelength for applications requiring distinct red-orange visibility without the intensity of deep red LEDs.

Part Context

This part belongs to the American Bright Optoelectronics discrete LED family, specifically tailored for high-reliability applications. The BL-XUB series emphasizes durability and consistent optical performance. The TR9 suffix typically denotes specific tape-and-reel packaging configurations for automated assembly processes.

Replacement Considerations

No direct public substitute part numbers are confirmed in the provided documentation. Cross-reference mechanical dimensions and electrical characteristics carefully if considering alternative vendors.
