BL02RN1R3J2B

Chip Ferrite Bead Overview

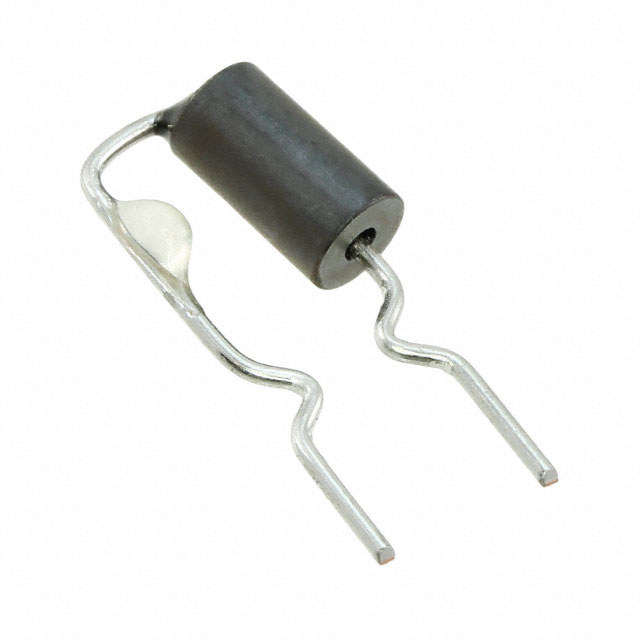

The BL02RN1R3J2B is a ferrite bead from the Murata BL01/02/03 series, designed for high-frequency noise suppression. It features lead wires with a kinked radial bend configuration. The component provides a DC resistance of 20 mOhms and supports a current rating of 7A. These electrical parameters define its performance in filtering applications.

Chip Ferrite Bead Feature Summary

• Produces high frequency loss for effective noise suppression
• Features simple construction for ease of use
• Includes lead wires with kinked radial bend for mounting

Chip Ferrite Bead Applications

• High frequency noise suppression circuits
• Electronic equipment requiring signal integrity maintenance

Chip Ferrite Bead Procurement Notes

Verify the exact part number against official Murata documentation to ensure compatibility with specific circuit requirements. Confirm availability status as supply conditions may vary. Check for any recent product discontinuance notifications or lifecycle changes before finalizing procurement decisions.

Chip Ferrite Bead Selection Notes

Select this component based on its 7A current handling capability and low DC resistance. Ensure the kinked radial bend package fits the mechanical constraints of the target assembly. Validate that the ferrite material characteristics align with the specific noise frequencies present in the application environment.

Chip Ferrite Bead Part Context

This component belongs to the BL01/02/03 series of ferrite beads manufactured by Murata Electronics. These parts are engineered to generate high-frequency loss, making them suitable for suppressing electromagnetic interference in electronic systems. The series offers a robust solution for noise control in various industrial and consumer applications.

Chip Ferrite Bead Replacement Considerations

Consult official Murata documentation for verified substitute part numbers. Cross-reference specifications such as current rating, DC resistance, and package dimensions to ensure functional equivalence. Do not assume generic ferrite beads are compatible without verifying technical alignment.
