BL02RN2R1M2B

Chip Ferrite Bead Overview

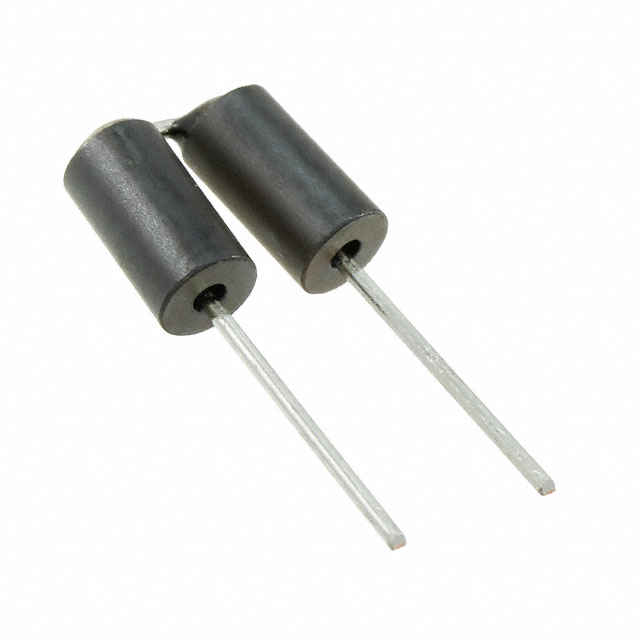

The BL02RN2R1M2B is a ferrite bead from the Murata BL02 series, designed for high-frequency noise suppression. It features an axial package with split radial leads. The component has a maximum DC resistance of 20mOhm and a current rating of 7A. It operates within a temperature range of -40°C to 85°C.

Chip Ferrite Bead Feature Summary

• Provides high-frequency loss for noise suppression
• Features lead wires for easy mounting

Chip Ferrite Bead Applications

• High frequency noise suppression circuits

Chip Ferrite Bead Procurement Notes

Verify product status as this specific part number may be obsolete or discontinued. Confirm availability through official Murata channels or authorized distributors. Check for end-of-life notifications before finalizing procurement plans to ensure supply chain stability.

Chip Ferrite Bead Selection Notes

Select this component for applications requiring axial ferrite beads with split radial leads. Ensure the required current rating of 7A and low DC resistance of 20mOhm meet circuit specifications. Verify compatibility with operating temperatures between -40°C and 85°C.

Chip Ferrite Bead Part Context

This component belongs to the BL02 series of ferrite beads manufactured by Murata Electronics. These components are specifically engineered to suppress electromagnetic interference in electronic circuits by providing impedance at high frequencies.

Chip Ferrite Bead Replacement Considerations

Check for direct substitutes within the BL02 series or equivalent axial ferrite beads from other manufacturers. Verify that any replacement matches the 7A current rating and 20mOhm DCR specifications.
