BL02RN2R3J2B

Chip Ferrite Bead Overview

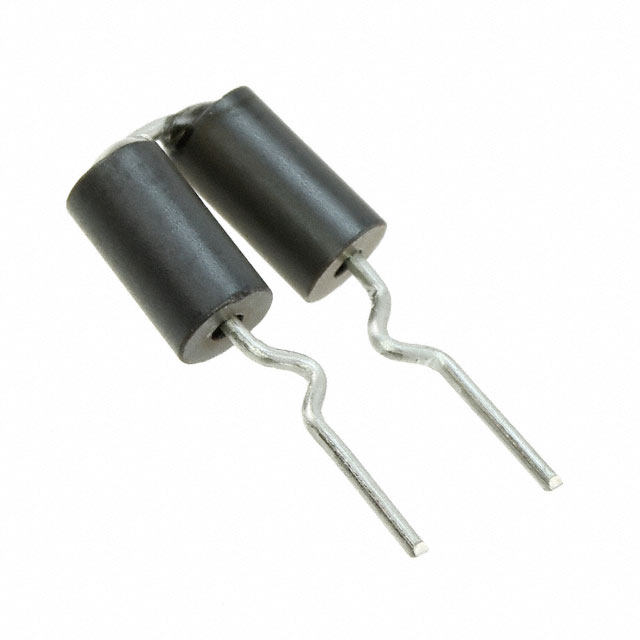

The BL02RN2R3J2B is a ferrite bead from the Murata BL series, designed for high-frequency noise suppression. It features an axial package with split radial leads, suitable for through-hole mounting. The component provides one line of filtering capability. Key electrical parameters include a maximum DC resistance of 20 mOhm and a current rating of 7A. It operates within a temperature range of -40°C to 85°C.

Chip Ferrite Bead Feature Summary

• Provides high-frequency loss for noise suppression
• Features lead wires for easy installation
• Utilizes axial package with split radial bend

Chip Ferrite Bead Applications

• High-frequency noise suppression circuits
• Power supply filtering applications
• Signal line protection

Chip Ferrite Bead Procurement Notes

Verify end-of-life status as the product is listed as discontinued. Confirm availability through authorized distributors or secondary markets. Check for valid replacement components if new designs are required. Ensure compatibility with existing PCB footprints and thermal requirements before procurement.

Chip Ferrite Bead Selection Notes

Select this component for applications requiring robust through-hole ferrite beads with high current handling capabilities. Consider the axial form factor for board space constraints. Verify that the 7A current rating meets circuit demands. Evaluate the low DC resistance for minimal voltage drop in power lines.

Chip Ferrite Bead Part Context

This part belongs to the BL series of ferrite beads manufactured by Murata Electronics. These components are engineered to attenuate electromagnetic interference in electronic circuits. The specific model utilizes a split radial lead design to facilitate secure mounting on printed circuit boards while maintaining effective noise filtering performance across specified frequency ranges.

Chip Ferrite Bead Replacement Considerations

Public confirmed substitute part numbers: None available.
