BL02RN2R3N1A

Chip Ferrite Bead Overview

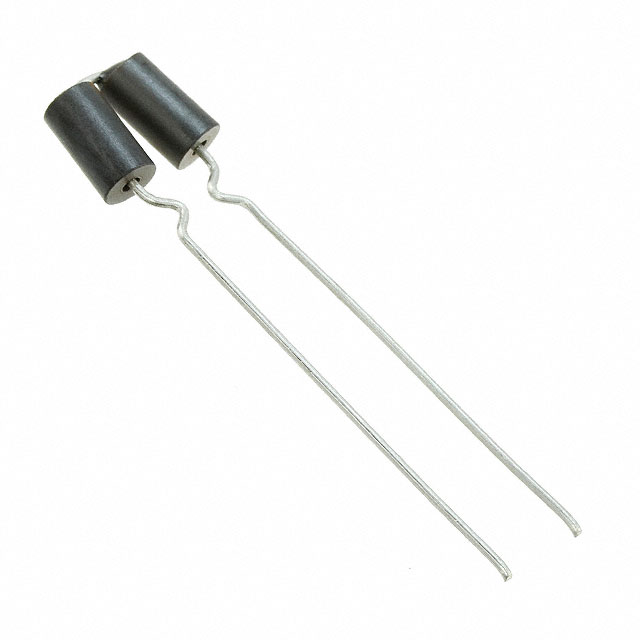

The BL02RN2R3N1A is a ferrite bead from the EMIFIL BL0 series, designed for noise suppression on single lines. It features an axial leaded construction with split radial bending for through-hole mounting. Key electrical parameters include a maximum DC current rating of 6 A and a maximum resistance of 20 mOhm. The component operates within a temperature range of -40°C to +85°C. Physical dimensions are specified as 6.5 mm in length and 2.3 mm in width.

Chip Ferrite Bead Feature Summary

• Provides high-frequency loss for effective noise suppression
• Features axial leads with split radial bending for secure mounting
• Designed for single-line EMI filtering applications

Chip Ferrite Bead Applications

• EMI and noise suppression on single signal lines
• High-frequency noise reduction in electronic circuits
• Through-hole mounting in PCB assemblies requiring axial components

Chip Ferrite Bead Procurement Notes

Verify component status as this part may be discontinued or subject to limited supply. Confirm exact physical dimensions and electrical ratings against the official Murata datasheet before integration. Ensure compatibility with existing through-hole manufacturing processes and thermal requirements. Check for valid replacement alternatives if availability is constrained.

Chip Ferrite Bead Selection Notes

Select this component for applications requiring robust through-hole ferrite beads with high current handling capabilities. The split radial design facilitates stable mechanical attachment. Verify that the 6 A current rating and 20 mOhm resistance meet circuit specifications. Consider the operating temperature range for environmental suitability.

Chip Ferrite Bead Part Context

This component belongs to the Murata EMIFIL BL0 series, which consists of ferrite beads with lead wires intended for high-frequency noise suppression. The series is characterized by its ability to attenuate electromagnetic interference in single-line configurations using axial or radial leaded packages suitable for standard PCB mounting techniques.

Chip Ferrite Bead Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official Murata resources for potential cross-references or updated product line information.
