BL2070B-6-F

Power Line Filter Modules Overview

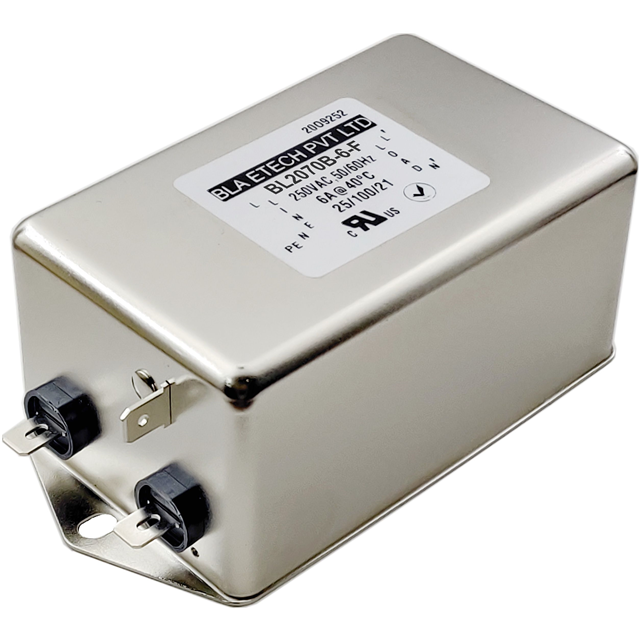

The BL2070B-6-F is a single-phase, two-stage EMC/EMI line filter manufactured by BLA ETECH. It features a rated AC voltage of 250V and a current rating of 6A. The component utilizes chassis mount installation with quick connect termination style. Operating temperature range spans from -25°C to 100°C, and it functions within a frequency range of DC to 400Hz.

Power Line Filter Modules Feature Summary

• Provides dual-stage filtering for effective electromagnetic interference suppression in single-phase applications
• Designed for secure chassis mounting to ensure stable physical integration in equipment enclosures
• Utilizes quick connect termination style for simplified electrical wiring and assembly processes

Power Line Filter Modules Applications

• Single-phase power supply input stages requiring EMI suppression
• Industrial electronic equipment chassis installations
• Medical device power interfaces meeting safety standards

Power Line Filter Modules Procurement Notes

Verify the specific manufacturer designation as sources list both BLA ETECH and TE Connectivity/Schaffner variants. Confirm that the 6A current rating and 250VAC specification match your system requirements. Ensure the quick connect termination type is compatible with your wiring harness. Check for any specific agency approvals required for your target market compliance.

Power Line Filter Modules Selection Notes

Select this component when a single-phase, two-stage filter is required for 6A circuits. Ensure the chassis mount form factor fits the available enclosure space. Verify that the operating temperature range of -25°C to 100°C meets environmental conditions. Confirm compatibility with the 250VAC system voltage before integration.

Power Line Filter Modules Part Context

This part belongs to the BL2070 series of single-phase EMC/EMI line filters. The series includes various current ratings such as 12A and 16A models. These filters are designed for general industrial and commercial power line noise reduction. The two-stage configuration provides enhanced attenuation compared to single-stage alternatives.

Power Line Filter Modules Replacement Considerations

BL2070B-12-F and BL2070B-16-F are related series components with higher current ratings. FN2070-6-06 is a comparable TE Connectivity/Schaffner product with similar specifications.
