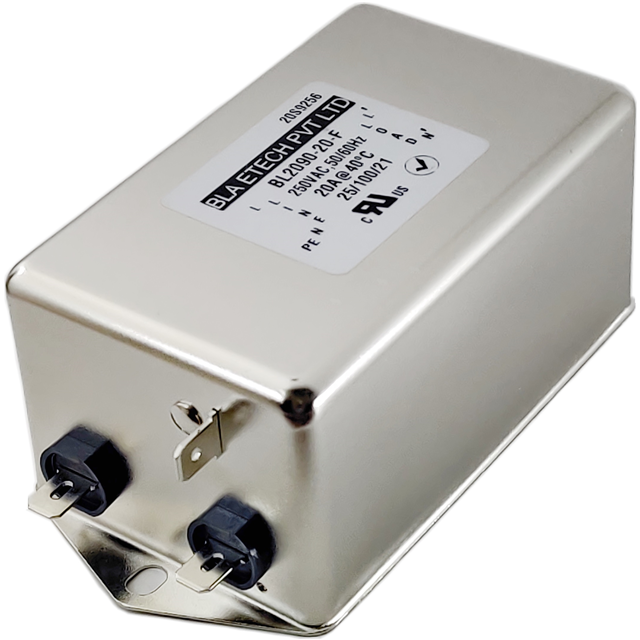

BL2090-20-F

Power Line Filter Modules Overview

The BL2090-20-F is a single-phase EMI/EMC line filter manufactured by BLA ETECH. It is designed for electromagnetic interference suppression in AC power circuits. The component supports a rated current of 20 A and operates at a voltage of 250 VAC. This series provides attenuation for conducted noise on power lines, ensuring compliance with EMC standards.

Power Line Filter Modules Feature Summary

• Single-phase configuration for AC power line filtering
• Designed for EMI and EMC noise suppression
• Rated for 20 A continuous current operation

Power Line Filter Modules Applications

• Industrial equipment power input stages
• Commercial machinery requiring EMC compliance
• Power supply units needing conducted noise reduction

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with the intended mounting method and terminal type. Cross-reference datasheet specifications for leakage current and insulation requirements before integration into safety-critical designs.

Power Line Filter Modules Selection Notes

Select this component based on the required 20 A current rating and 250 VAC operating voltage. Confirm that the filter's attenuation characteristics meet the specific EMC standards applicable to the end product. Evaluate space constraints for the single-phase housing size and ensure terminal connections match the system wiring.

Power Line Filter Modules Part Context

This model belongs to the BL2090 Series of single-phase EMI filters from BLA ETECH. The series covers a range of current ratings, with the -20-F variant specifically designated for 20 A applications. These components are part of a broader portfolio of EMC solutions provided by the manufacturer for industrial and commercial markets.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify pinout and mounting hole patterns if considering alternative brands. Consult the manufacturer for direct equivalents or updated revisions.
