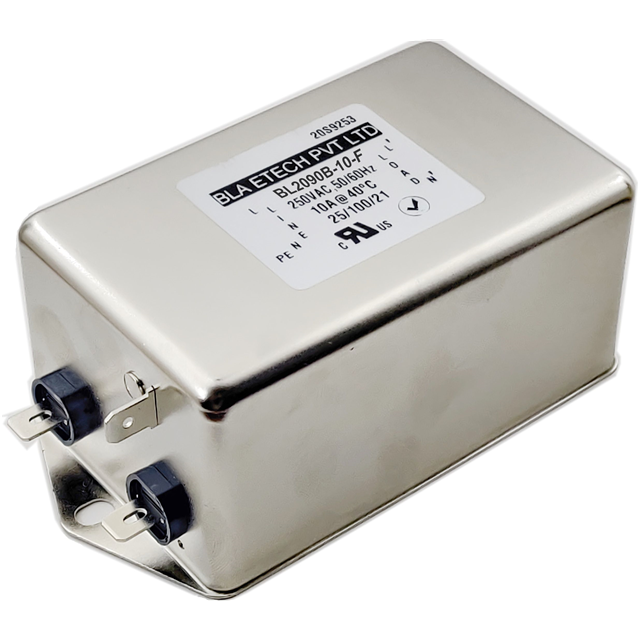

BL2090B-10-F

Power Line Filter Modules Overview

The BL2090B-10-F is a single-phase EMC/EMI line filter module designed for chassis mounting. It operates within a frequency range of DC to 400Hz and supports a rated AC voltage of 250V. The component provides 16mH inductance for circuit tuning and filtering applications. It features quick connect termination styles and functions reliably within an operating temperature range of -25°C to 100°C.

Power Line Filter Modules Feature Summary

• Dual-stage filtration architecture for enhanced interference suppression
• Single-phase configuration for power line filtering
• Chassis mount design with quick connect terminations

Power Line Filter Modules Applications

• Medical equipment
• General purpose electronic systems
• Industrial control units

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to confirm exact electrical ratings and physical dimensions. Ensure compatibility with existing chassis mounting hardware and termination requirements before procurement. Cross-reference approval agencies such as CE or cURus if regulatory compliance is required for the final assembly.

Power Line Filter Modules Selection Notes

Select this component when dual-stage EMI suppression is necessary for single-phase AC lines up to 250V. Consider the 16mH inductance value for appropriate noise attenuation characteristics. Verify that the operating temperature range meets environmental conditions and that quick connect terminals align with wiring harness specifications.

Power Line Filter Modules Part Context

This model belongs to the BL2090 series, which utilizes a dual-stage filtration approach superior to single-stage designs for demanding interference scenarios. The series is manufactured by BLA ETECH and EMV EMC, focusing on robust EMC/EMI performance for sensitive electronic applications requiring reliable power line conditioning.

Power Line Filter Modules Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult manufacturer cross-reference guides for compatible alternatives.
