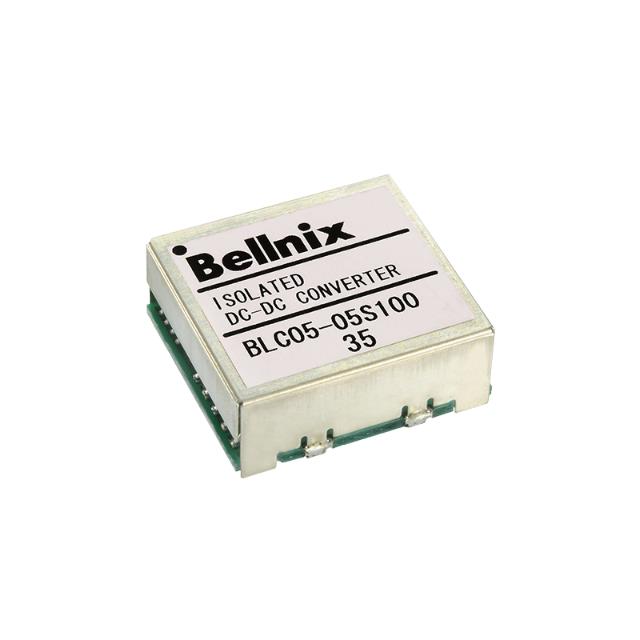

BLC05-05S100

BLC05-05S100 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Bellnix Co., Ltd.. Its product description is DC DC CONVERTER 5V 5W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for BLC05-05S100

• Description：DC DC CONVERTER 5V 5W
• Series：BLC05 (6W)
• Mfr：Bellnix Co., Ltd.
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：9V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1A
• Power (Watts)：5 W
• Voltage - Isolation：500 V
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：77%
• Mounting Type：Surface Mount
• Package / Case：8-SMD Module, 7 Leads
• Size / Dimension：0.91" L x 0.83" W x 0.39" H (23.2mm x 21.1mm x 10.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for BLC05-05S100
