BLE18PK160SN1D

Chip Ferrite Bead Overview

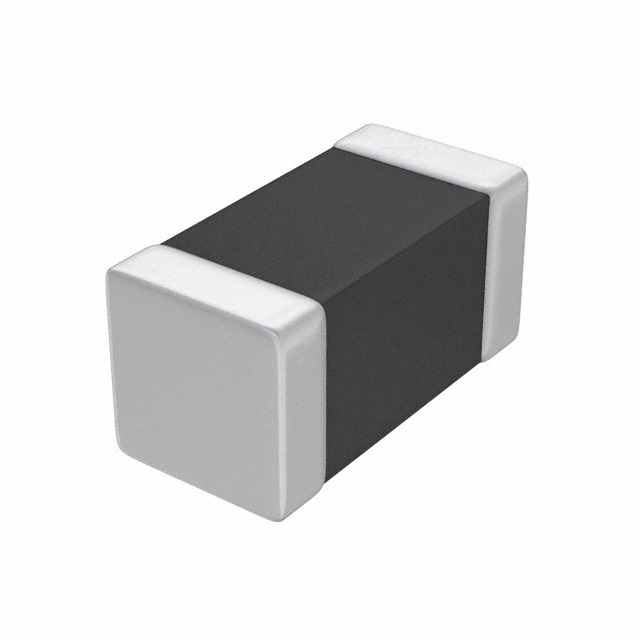

The Murata BLE18PK160SN1D is a single-channel ferrite chip bead designed for surface-mount applications in the 0603 (1608 metric) package. It exhibits an impedance of 16 Ohms at 100 MHz with a maximum DC current rating of 5 Amperes and a maximum DC resistance of 12 mOhms. The component operates within a temperature range of -55°C to +125°C, featuring physical dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height.

Chip Ferrite Bead Feature Summary

• Provides effective electromagnetic interference suppression through high-frequency impedance characteristics.
• Supports high-current power line applications due to elevated DC current handling capabilities.
• Utilizes a compact surface-mount footprint suitable for dense circuit board layouts.

Chip Ferrite Bead Applications

• Electromagnetic interference filtering on power supply lines
• Signal integrity enhancement in high-speed digital circuits
• Noise suppression in portable electronic devices

Chip Ferrite Bead Procurement Notes

Verify the specific impedance tolerance and DC resistance values against the official Murata datasheet prior to integration. Confirm that the 0603 package dimensions align with the target PCB land pattern. Ensure the selected variant meets the required thermal operating range for the intended environment.

Chip Ferrite Bead Selection Notes

Select this component when high current capacity is required alongside moderate noise attenuation in a small form factor. Compare the 16 Ohm impedance profile against alternative series if higher frequency rejection or lower DC resistance is necessary for the specific circuit topology.

Chip Ferrite Bead Part Context

This part belongs to the BLE series of ferrite beads from Murata Electronics, which are engineered for general-purpose EMI suppression. The series offers various impedance levels and current ratings within standardized packages to support diverse power and signal conditioning requirements.

Chip Ferrite Bead Replacement Considerations

Consult the official Murata replacement guide for verified cross-references. Generic substitutes may not match the specific impedance curve or current handling limits.
