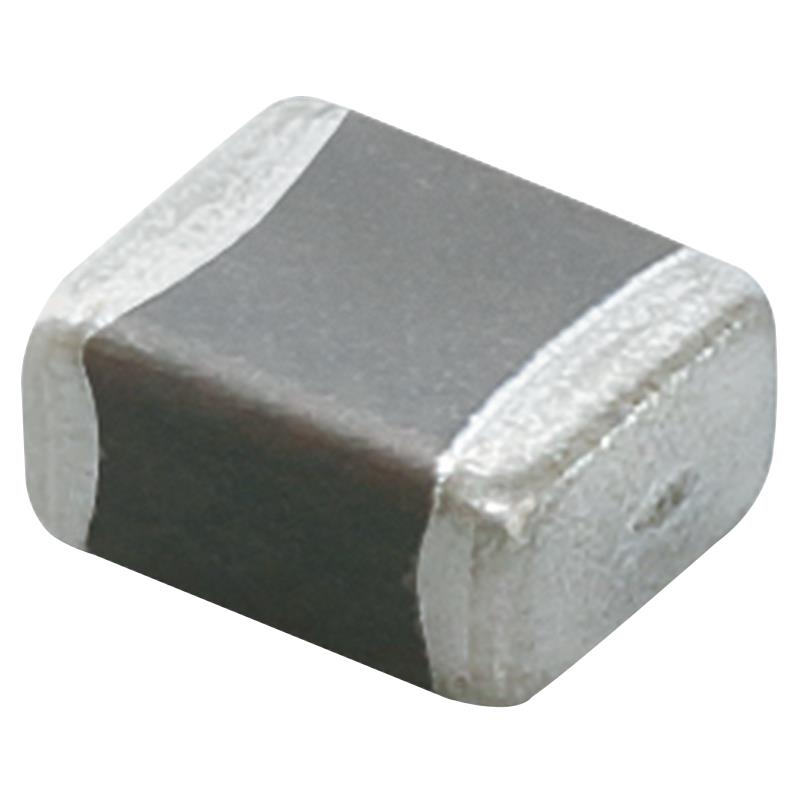

BLE32SN120BN1L

$0.89

Description：FERRITE BEAD 12 OHM 1210 1LN
Series：EMIFIL®, BLE32
Mfr：Murata Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:69ed6d22cc63 Category: Ferrite Beads and Chips Brand: Murata Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BLE32SN120BN1L is listed in the Chip Ferrite Bead range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is FERRITE BEAD 12 OHM 1210 1LN. Review the specifications below when checking this part for your BOM.

Chip Ferrite Bead specifications for BLE32SN120BN1L

Description：FERRITE BEAD 12 OHM 1210 1LN
Series：EMIFIL®, BLE32
Mfr：Murata Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power Line
Number of Lines：1
Impedance @ Frequency：12 Ohms @ 100 MHz
Current Rating (Max)：20A
DC Resistance (DCR) (Max)：0.6mOhm
Ratings：-
Operating Temperature：-55°C ~ 150°C
Package / Case：1210 (3225 Metric)
Mounting Type：Surface Mount
Height (Max)：0.087" (2.20mm)
Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
Features：-

Chip Ferrite Bead datasheet and documents for BLE32SN120BN1L

BLE32SN120BN1L

Chip Ferrite Bead Overview

The Murata Electronics BLE32SN120BN1L is a single-line ferrite bead chip designed for power line noise suppression. It features a 1210 (3225 metric) surface-mount package with dimensions of 3.20mm length, 2.50mm width, and a maximum height of 2.20mm. The component exhibits an impedance of 12 Ohms at 100 MHz and supports a maximum rated current of 20A. Its DC resistance is specified as a maximum of 0.6 milliohms. The device operates within a temperature range of -55°C to +125°C and complies with RoHS3 standards.

Chip Ferrite Bead Feature Summary

Functions nearly as a resistor at noise frequencies to suppress electromagnetic interference on power lines
Utilizes a nickel barrier structure to enhance reliability and solderability

Chip Ferrite Bead Applications

Power line noise filtering in electronic circuits
Electromagnetic interference suppression in high-current applications
Signal integrity maintenance in compact surface-mount designs

Chip Ferrite Bead Procurement Notes

Verify the specific suffix 'BN1L' against official Murata documentation to confirm non-auto-placement status and packaging type. Ensure compatibility with standard reflow profiles and check for any recent specification updates regarding the nickel barrier construction or impedance tolerances before finalizing procurement orders.

Chip Ferrite Bead Selection Notes

Select this component when high current handling up to 20A is required alongside moderate noise attenuation at 100 MHz. The low DC resistance minimizes power loss, while the 1210 footprint offers a balance between thermal performance and board space efficiency for power rail protection.

Chip Ferrite Bead Part Context

This part belongs to the Murata EMIFIL BLE32 series of chip power beads. The series is engineered for robust noise suppression in demanding environments, utilizing specialized materials to maintain performance across wide temperature ranges and high current loads typical in modern electronic systems.
