BLNK1-542R+

Overview

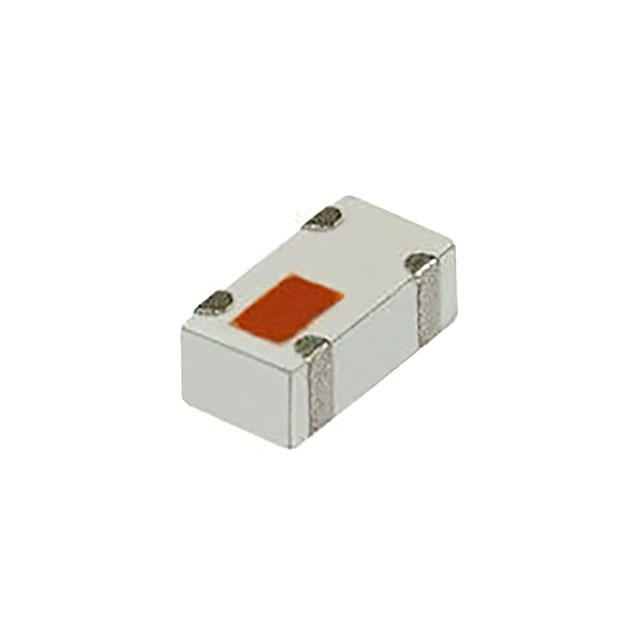

The BLNK1-542R+ is a miniature LTCC transformer designed for RF applications, operating within the 4.9 GHz to 5.95 GHz frequency range. It provides a 1:1 impedance transformation between two 50 Ohm ports, facilitating balanced-to-unbalanced or balanced-to-balanced signal conversion in compact designs. The component features a surface-mount package with dimensions of 0.039 inches by 0.020 inches (1.0 mm x 0.5 mm), suitable for high-density PCB layouts. Key electrical specifications include a typical insertion loss of 1 dB and a phase difference of 3.8 degrees at center frequency. Return loss is specified at a minimum of 9.5 dB, ensuring effective impedance matching across the operational band.

Feature Summary

• Miniature LTCC construction enables integration into space-constrained RF circuits
• Provides precise 1:1 impedance transformation between dual 50 Ohm ports
• Optimized for high-frequency operation from 4.9 GHz to 5.95 GHz
• Surface-mount design supports automated assembly processes

Applications

• Wireless LAN modules requiring balanced signal routing
• Mobile phone front-end circuitry for RF signal processing
• Bluetooth transceivers utilizing differential signaling
• RFID reader antenna interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required tolerance levels and packaging formats. Confirm that the requested quantity aligns with standard reel sizes if bulk procurement is intended. Cross-reference the part number with official Mini-Circuits documentation to validate the latest revision status and RoHS compliance declarations prior to finalizing purchase orders.

Selection Notes

Select this component when a low-profile solution is required for balancing signals in the 5 GHz ISM band. The choice depends on the necessity for minimal insertion loss and tight phase matching in differential paths. Evaluate the physical footprint constraints against the 0402-style package dimensions. Ensure the application environment does not exceed the thermal limits defined in the official specification sheet for continuous operation.

Part Context

This device belongs to the BLNK series of ceramic baluns manufactured by Mini-Circuits. The series utilizes Low-Temperature Co-fired Ceramic technology to achieve reliable performance in microwave frequencies. These components are engineered to replace discrete transformer implementations, offering improved consistency and reduced board space compared to traditional wound components in similar frequency ranges.

Replacement Considerations

Direct substitutes may include other Mini-Circuits models such as the BLNK2-542R+ for slightly different form factors. Verify pinout compatibility and electrical parameters against the original design requirements before implementing any cross-brand alternatives.
