BM09B-XASS-TF

Headers, Male Pins Overview

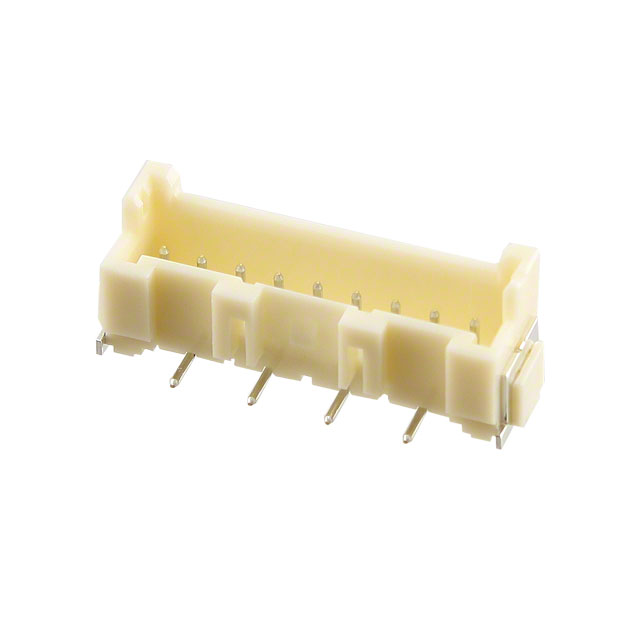

BM09B-XASS-TF is a surface-mount header connector from the JST ZE/XA series, featuring 9 positions with a 2.5mm pitch. It utilizes copper alloy contacts with tin plating and a natural polyamide insulation rated UL94 V-0. The component supports solder termination, operates between -25°C and 85°C, and carries a 3A current rating at 250V. Key mechanical attributes include a 9.4mm mating stack height and slide-lock fastening.

Headers, Male Pins Feature Summary

• Surface-mount design with fixed solder tails for automated pick-and-place assembly
• Slide-lock fastening mechanism ensures secure mating engagement
• Four-wall shielded housing provides environmental protection

Headers, Male Pins Applications

• Board-to-cable interconnections in consumer electronics
• Internal wiring within industrial control modules
• Signal transmission in automotive electronic units

Headers, Male Pins Procurement Notes

Verify the specific suffix 'TF' against the official JST datasheet to confirm tape-and-reel packaging orientation and contact plating specifications. Ensure compatibility with corresponding ZE-series housings. Confirm RoHS compliance status for the specific production batch prior to integration into regulated assemblies.

Headers, Male Pins Selection Notes

Select this component when a low-profile surface-mount header with 2.5mm spacing is required. The fixed tail design simplifies PCB layout compared to floating variants. Evaluate thermal resistance during reflow processes due to the polyamide material properties and ensure adequate board support for the 9.4mm stack height.

Headers, Male Pins Part Context

This part belongs to the BM09B-ZE family of connectors, designed for compact electronic applications. It serves as a male header counterpart to compatible female housings. The product line emphasizes reliable signal integrity and mechanical stability in space-constrained environments.

Headers, Male Pins Replacement Considerations

Direct substitutes include BM09B-XASS-TF(LF)(SN) which denotes lead-free and halogen-free compliance. Verify pin count and pitch equivalence before cross-referencing alternative manufacturers.
