Product Detailed Parameters

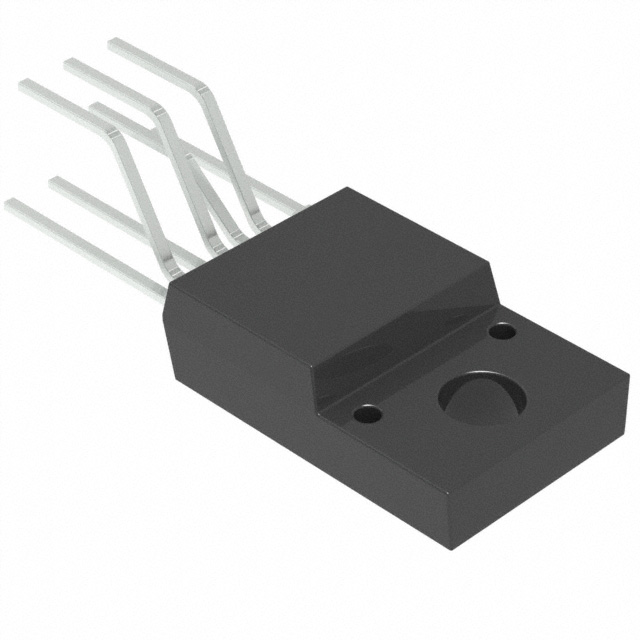

- Description：IC REG FLYBACK 950A TO220-7M
- Series：-
- Mfr：Rohm Semiconductor
- Package：Tube
- Function：-
- Output Configuration：Positive
- Topology：Flyback
- Output Type：-
- Number of Outputs：1
- Voltage - Input (Min)：8.9V
- Voltage - Input (Max)：26V
- Voltage - Output (Min/Fixed)：-
- Voltage - Output (Max)：-
- Current - Output：950µA
- Frequency - Switching：65kHz
- Synchronous Rectifier：No
- Operating Temperature：-40°C ~ 105°C (TA)
- Mounting Type：Through Hole
- Package / Case：TO-220-7 Full Pack, Formed Leads
- Supplier Device Package：TO-220-7M
- Grade：-
- Qualification：-
Download product information
Overview
The BM2P0163T-Z is a PWM type DC/DC converter IC with an integrated switching MOSFET designed for AC/DC applications. It supports both isolated and non-isolated topologies. Key electrical parameters include an input voltage range of 8.9 V to 26 V, a maximum drain voltage of 650 V, and a fixed switching frequency of 65 kHz. The device operates within a temperature range of -40°C to +105°C and is housed in a TO-220-7 package.
Feature Summary
- Integrates a 650V耐压 start circuit and switching MOSFET to simplify design and reduce power consumption.
- Employs current mode control with per-cycle current limiting for superior bandwidth and transient response.
- Features frequency hopping and burst operation at light loads to enhance efficiency and reduce EMI.
Applications
- Power systems for products with electrical sockets
- Low-power isolated converters
- Low-power non-isolated converters
Procurement Notes
Verify the specific ordering suffix and package variant against the official ROHM datasheet before procurement. Confirm that the application does not involve automotive equipment, as this component is not recommended for such use. Ensure compatibility with through-hole mounting requirements specified for the TO-220-7 package.
Selection Notes
Select this component for designs requiring an integrated high-voltage switch and controller in a single package. It is suitable for applications needing flexible power design via external current detection resistors. Consider its thermal performance and operating temperature range when designing for enclosed environments.
Part Context
This part belongs to the BM2P series of PWM DC/DC converters from ROHM Semiconductor. The series is optimized for AC/DC conversion in consumer electronics and appliances. It shares common family features like integrated high-voltage startup circuits and current mode control, but specific parameters vary by model.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout and electrical specifications carefully if considering alternative components from other manufacturers.
