BM6154NL

Overview

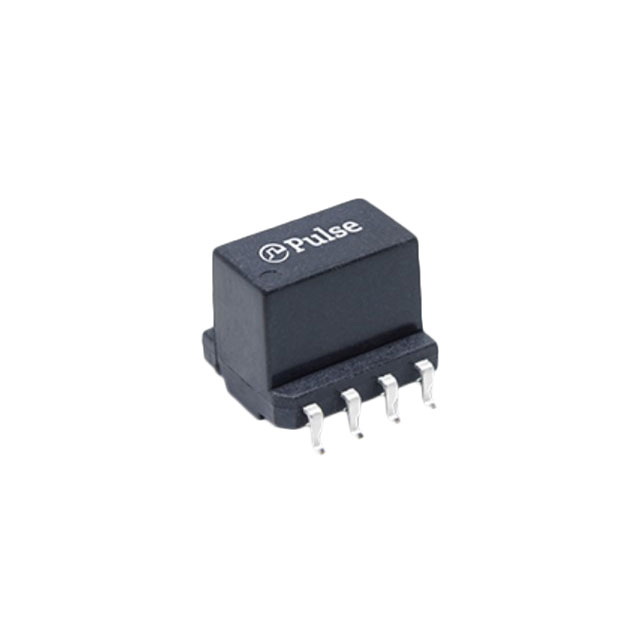

The BM6154NL is an audio and signal transformer manufactured by Pulse Electronics, designed for surface mount technology (SMT) applications. It features a primary inductance of 8 µH and supports a voltage isolation rating of 3 kV. The device utilizes a 1:1:1 winding ratio configuration with a tolerance of 2%. Certified under the AEC-Q200 standard, it ensures reliability for automotive environments. The maximum DC resistance is specified at 60 mOhms, facilitating efficient signal transmission within compact electronic assemblies.

Feature Summary

• AEC-Q200 certified for automotive reliability standards
• Surface mount construction for automated assembly integration
• High voltage isolation capability of 3 kV
• Compact design suitable for space-constrained signal processing

Applications

• Automotive infotainment systems
• Vehicle communication networks
• Signal conditioning circuits in automotive electronics

Procurement Notes

Verify component authenticity through authorized distributors to ensure compliance with AEC-Q200 standards. Confirm package integrity upon receipt to prevent damage to surface mount terminals. Cross-reference datasheet specifications against project requirements to validate electrical parameters such as inductance and isolation voltage before integration into final assemblies.

Selection Notes

Select this component when automotive-grade reliability and high voltage isolation are required for signal transformation. The 1:1:1 ratio suits impedance matching tasks where signal fidelity is critical. Ensure PCB layout accommodates surface mount footprints and thermal management needs associated with low DC resistance operation in dense automotive circuit designs.

Part Context

This part belongs to Pulse Electronics' portfolio of audio and signal transformers tailored for demanding environments. The BM series emphasizes robust performance in automotive sectors, adhering to strict quality certifications. It complements other components in power and signal management solutions, providing essential isolation and transformation capabilities for modern vehicle electronics architectures.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing circuit designs if considering alternative models from different manufacturers or series.
