BMB1J0120BN3JIT

Chip Ferrite Bead Overview

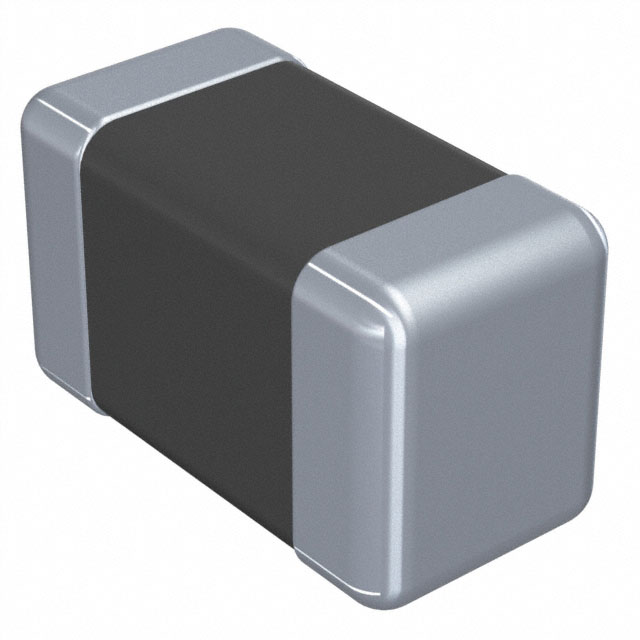

The BMB1J0120BN3JIT is a single-line ferrite bead from the TE Connectivity BMB-B series, designed for surface-mount applications in the 0603 (1608 metric) package. It exhibits an impedance of 120 Ohms at 100 MHz and supports a maximum current rating of 200mA. The component features a maximum DC resistance of 400 milliohms and operates within a temperature range of -55°C to 125°C. Physical dimensions are 1.60mm in length and 0.80mm in width, with a maximum height of 0.95mm. This device is RoHS3 compliant and classified under EAR99.

Chip Ferrite Bead Feature Summary

• Provides electromagnetic interference suppression through high-impedance characteristics at specific frequencies
• Utilizes a compact surface-mount footprint suitable for space-constrained circuit designs
• Engineered for stable performance across a wide industrial temperature range

Chip Ferrite Bead Applications

• Signal line filtering in portable electronic devices
• Noise suppression on data transmission lines
• Power rail decoupling in low-current circuits

Chip Ferrite Bead Procurement Notes

Verify component status as this part may be discontinued or subject to product change notices. Confirm exact impedance tolerance and current derating curves against the official datasheet before integration. Ensure packaging specifications match production requirements, as availability varies by distributor. Cross-reference manufacturer part numbers to avoid substitution errors during procurement.

Chip Ferrite Bead Selection Notes

Select this component when a 0603 footprint is required with 120 Ohm impedance at 100 MHz. Evaluate the 200mA current rating against peak load conditions to prevent saturation. Consider the 400 milliohm DC resistance impact on voltage drop. Compare physical height constraints against board clearance requirements. Verify thermal management needs within the specified operating temperature range.

Chip Ferrite Bead Part Context

This ferrite bead belongs to the BMB-B series, which offers various impedance values in standard surface-mount packages. The series is designed for general-purpose noise suppression in consumer and industrial electronics. Components in this family share similar mounting characteristics but vary in electrical performance. The BMB1J0120BN3JIT represents a specific configuration optimized for moderate current applications requiring compact filtering solutions.

Chip Ferrite Bead Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official replacement guide or engineering change notices for valid alternatives. Do not assume functional equivalence with other series without verifying impedance curves and current ratings.
