BMB2A0200BN3

Chip Ferrite Bead Overview

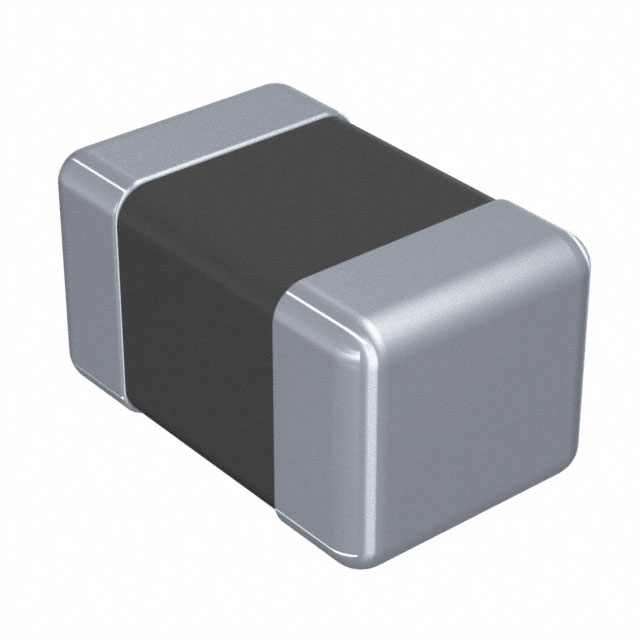

The BMB2A0200BN3 is a single-line ferrite bead from the TE Connectivity BMB-B series, designed for surface mount applications in the 0805 (1608 metric) package. It provides an impedance of 200 Ohms at 100 MHz with a maximum DC resistance of 500 milliohms and a rated current of 200mA. The component operates within a temperature range of -55°C to 125°C and has a maximum height of 0.043 inches (1.10mm). This part is currently obsolete.

Chip Ferrite Bead Feature Summary

• Provides high-frequency noise suppression through specific impedance characteristics at 100 MHz
• Designed for compact surface mount integration using standard 0805 footprint dimensions
• Constructed to withstand wide operating temperature ranges suitable for industrial environments

Chip Ferrite Bead Applications

• High-speed digital signal line filtering
• Power supply output noise attenuation
• EMI suppression in compact electronic modules

Chip Ferrite Bead Procurement Notes

This component is officially listed as obsolete by the manufacturer. Verification of final availability through authorized distributors or surplus channels is required before procurement planning. Ensure compliance with RoHS3 standards if applicable to the target assembly process. Confirm lead times and authenticity when sourcing from non-primary suppliers due to the discontinued status.

Chip Ferrite Bead Selection Notes

Engineers should evaluate alternative components from the same manufacturer family that remain active. Consider parameters such as impedance tolerance, current rating, and physical footprint compatibility when selecting replacements. Verify that substitute parts meet the original design requirements for noise suppression and thermal performance without altering the board layout constraints.

Chip Ferrite Bead Part Context

The BMB2A0200BN3 belongs to the BMB-B series of ferrite beads manufactured by TE Connectivity Passive Product. These components are passive filters used to suppress electromagnetic interference in electronic circuits. The series is characterized by its chip-style construction and suitability for automated surface mount technology assembly processes.

Chip Ferrite Bead Replacement Considerations

Publicly confirmed substitute part numbers for this specific model were not identified in the provided documentation. Users must consult official manufacturer resources for current recommended alternatives.
