BMB2A0750BN3

Chip Ferrite Bead Overview

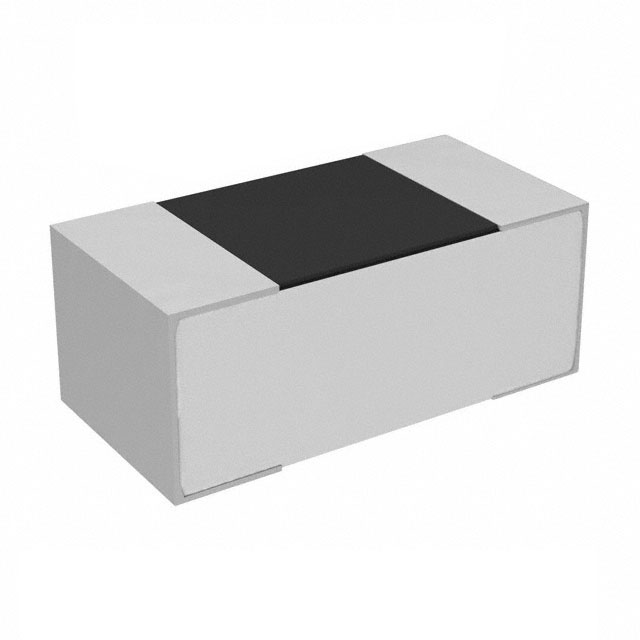

The BMB2A0750BN3 is a ferrite bead component manufactured by TE Connectivity Passive Product. It provides an impedance of 750 Ohms at 100 MHz and supports a rated current of 200 mA. The device features a maximum DC resistance of 500 milliohms and utilizes a 0805 (2012 Metric) surface mount package with dimensions of 2.00mm length by 1.20mm width. It operates within a temperature range of -55°C to 125°C and contains two lines.

Chip Ferrite Bead Feature Summary

• Provides high impedance filtering for noise suppression in high-frequency circuits
• Supports surface mount installation for automated assembly processes
• Designed for operation across extended industrial temperature ranges

Chip Ferrite Bead Applications

• High-frequency signal line filtering
• Power supply noise attenuation
• EMI suppression in compact electronic modules

Chip Ferrite Bead Procurement Notes

This component is officially classified as obsolete and is no longer manufactured by the producer. Verification of availability should focus on identifying valid substitute part numbers or checking secondary market sources, as direct procurement from the manufacturer is not possible. Confirm RoHS compliance status through official documentation before integration.

Chip Ferrite Bead Selection Notes

Engineers selecting this component must account for its discontinued status when designing new hardware. Evaluation should prioritize compatible replacement parts that match the required impedance characteristics and physical footprint. Ensure that any alternative selection maintains compatibility with existing thermal and electrical constraints.

Chip Ferrite Bead Part Context

This ferrite bead belongs to the BMB-B series produced by TE Connectivity Passive Product. The series is designed for general-purpose noise suppression applications requiring reliable performance in space-constrained environments. The component integrates magnetic materials optimized for specific frequency response profiles.

Chip Ferrite Bead Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Engineers should consult official manufacturer substitution guides or authorized distributors for equivalent components.
