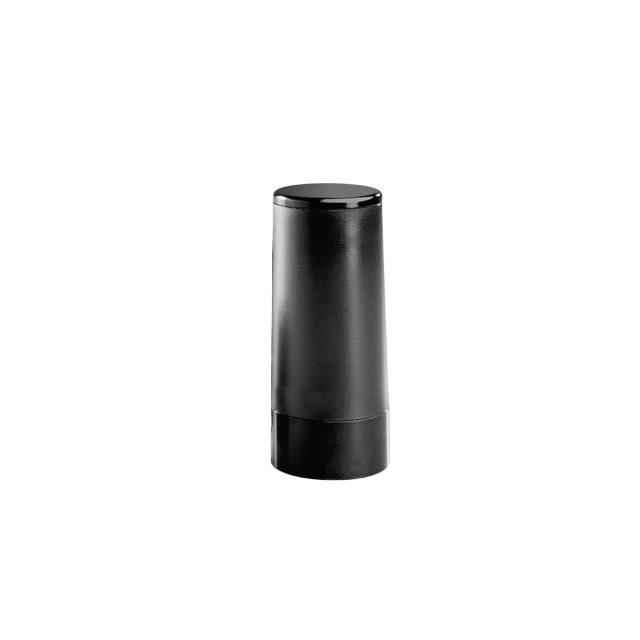

BMLPV700 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol PCTEL. Its product description is RF ANT 2.2GHZ DOME PANEL MNT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for BMLPV700
- Description：RF ANT 2.2GHZ DOME PANEL MNT
- Series：MLPV
- Mfr：Amphenol PCTEL
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.2GHz
- Frequency Range：1.7GHz ~ 2.7GHz
- Antenna Type：Dome
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：4dBi
- Features：-
- Termination：-
- Ingress Protection：IP67
- Grade：-
- Qualification：-
- Mounting Type：Panel Mount
- Height (Max)：1.791" (45.50mm)
- Applications：-
- Power - Max：100 W
Antennas RF datasheet and documents for BMLPV700
Antennas RF Overview
The BMLPV700 is a low-profile dome antenna manufactured by Amphenol PCTEL, designed for panel mounting applications. It operates within the 740-870 MHz frequency range, with specific documentation citing 760-870 MHz and 1.7GHz ~ 2.7GHz ranges. The unit provides an average gain of 4 dBi and supports a maximum power input of 100 W. Key physical specifications include a maximum height of 2.400 inches (60.96 mm) and an IP67 ingress protection rating. The connector interface is not explicitly defined in the provided text, though it is categorized under RF antennas.
Antennas RF Feature Summary
- Low-profile dome design optimized for mobile connectivity including Wi-Fi, Bluetooth, and Bluetooth Low-Energy.
- IP67 rated enclosure ensuring reliable performance in harsh environmental conditions.
- Requires mounting on a metallic ground plane to achieve specified operational characteristics.
Antennas RF Applications
- 2G, 3G, and 5G cellular network infrastructure
- LTE communication systems
- Mobile broadband connectivity solutions
Antennas RF Procurement Notes
Verify the specific frequency band requirement against project specifications, as sources cite both 740-870 MHz and 1.7-2.7 GHz ranges. Confirm that the installation environment allows for a metallic ground plane, which is mandatory for proper antenna function. Check manufacturer lead times, which are listed as approximately 18 weeks, to ensure supply chain alignment with production schedules.
Antennas RF Selection Notes
Select this component when a compact, weather-resistant antenna is required for cellular bands around 800 MHz. Ensure the host system can provide the necessary metallic ground plane for optimal gain. Consider the 100 W power handling capability if high-power transmission is involved. Verify compatibility with existing mounting hardware due to the specific panel mount form factor.
Antennas RF Part Context
The BMLPV700 belongs to the PCTEL Pulse-Lok or general mobile antenna portfolio from Amphenol PCTEL. This series focuses on providing reliable wireless connectivity for next-generation mobile networks. The product represents a specialized RF solution distinct from standard D-sub connectors or circular push-pull accessories found in other Amphenol lines.
Antennas RF Replacement Considerations
No direct substitute part numbers are confirmed in the provided documentation. Consult Amphenol PCTEL technical support for cross-referencing alternatives based on specific frequency and gain requirements.
