BMMA00131364100MV1

Fixed Inductors Overview

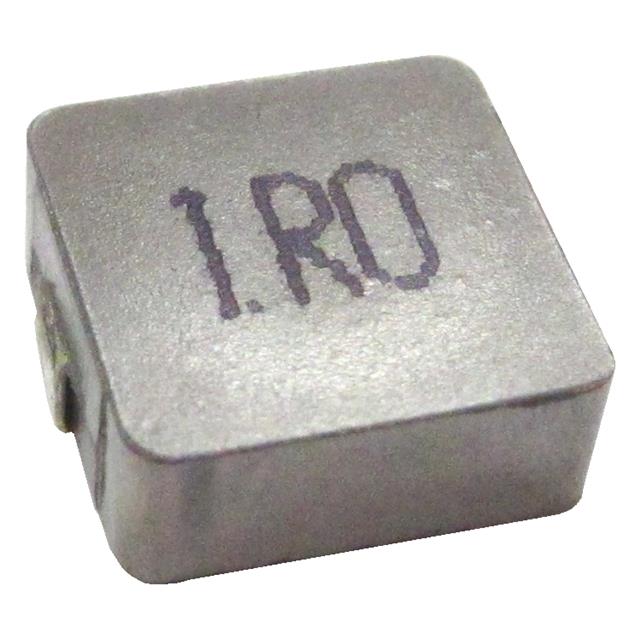

The BMMA00131364100MV1 is a fixed power inductor manufactured by Pulse Electronics, designed for surface-mount applications. It features a molded magnetic shielded construction to minimize electromagnetic interference and buzz noise. The component has an inductance of 10 µH with a tolerance of ±20%. It supports a maximum DC current of 10 A and a saturation current of 18.6 A. The DC resistance (DCR) is maximized at 17.2 mΩ. The device operates within a temperature range of -55°C to 125°C and is tested at a frequency of 100 kHz.

Fixed Inductors Feature Summary

• Molded magnetic shielded design for high-density mounting
• Ultra-low buzz noise characteristics
• Surface-mount technology (SMT) package

Fixed Inductors Applications

• High-density electronic circuit mounting
• Power supply filtering
• General-purpose power inductor applications

Fixed Inductors Procurement Notes

Verify the specific ordering suffix MV1 against the official Pulse Electronics datasheet to ensure correct packaging and tape-and-reel specifications. Confirm that the standard manufacturer lead time aligns with project schedules, as availability may vary. Ensure the selected component meets all required thermal and electrical constraints for the intended PCB layout before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when low profile and shielded performance are critical for space-constrained designs. The 10 µH value and 10 A rating suit moderate-power applications requiring stable inductance under load. Consider the 17.2 mΩ DCR for efficiency calculations. Verify that the operating temperature range covers the environmental conditions of the final assembly to prevent performance degradation.

Fixed Inductors Part Context

This part belongs to the BMMA series of fixed power inductors from Pulse Electronics. The series is characterized by molded magnetic shielding, which distinguishes it from open-core or unshielded alternatives. These components are engineered to reduce electromagnetic interference in compact electronics, offering a reliable solution for modern surface-mount manufacturing processes.

Fixed Inductors Replacement Considerations

Cross-reference with other BMMA series variants for different inductance values if system requirements change. Ensure any substitute maintains the same footprint dimensions and shielding type to preserve mechanical fit and EMI performance.
