BMOY4405

Antennas RF Overview

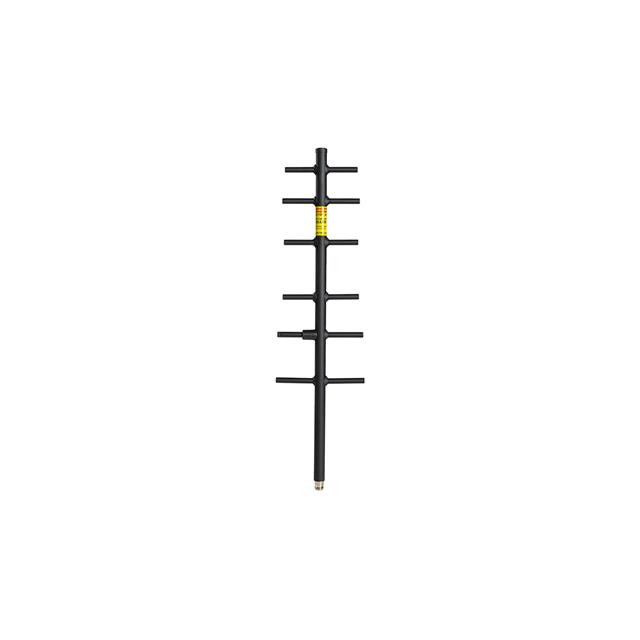

The BMOY4405 is a rugged outdoor directional Yagi antenna manufactured by Amphenol PCTEL, designed for UHF wireless communications. It operates within the 440–480 MHz frequency band with a center frequency of 460 MHz and a 20 MHz bandwidth. The antenna provides 9 dBd gain (11.3 dBi) and supports a power rating of 150 to 300 W. It features an N-Female connector, 50 Ohms impedance, and a VSWR of 1.5:1. Constructed with solid elements welded to a seamless aluminum boom, it utilizes bracket or pole mounting styles.

Antennas RF Feature Summary

• Directional five-element Yagi design optimized for UHF applications
• Robust construction using solid elements welded to a seamless aluminum boom
• Supports vertical or horizontal polarization configurations
• Engineered for ISM, LoRa, and LPWAN protocol deployments

Antennas RF Applications

• UHF wireless communication systems in the 440-480 MHz range
• LoRa and LPWAN network infrastructure
• ISM band signal transmission and reception
• Outdoor directional point-to-point links

Antennas RF Procurement Notes

Verify specific connector types and power ratings against official datasheets, as sources indicate variations between N-Female and SO239 terminations with differing wattage limits. Confirm availability status directly with authorized distributors, as regional stock may be limited. Ensure mounting hardware compatibility with bracket or pole installation requirements before finalizing procurement orders.

Antennas RF Selection Notes

Select this model for high-gain directional applications requiring robust outdoor durability in the UHF spectrum. Consider the 150W to 300W power handling capabilities when matching transmitter outputs. Evaluate the N-Female versus SO239 connector options based on existing cable infrastructure. Verify polarization needs for vertical or horizontal alignment during site planning.

Antennas RF Part Context

The BMOY4405 belongs to the BMOY series of directional antennas from Amphenol PCTEL. It serves as a specialized solution for UHF frequencies, distinct from broader multiprotocol offerings. The component is categorized under outdoor antennas, emphasizing its suitability for permanent external installations rather than portable or indoor use cases.

Antennas RF Replacement Considerations

The MYA4505 is a related product but differs in frequency range (450-470 MHz) and connector type (SO239). Cross-reference technical specifications carefully to ensure frequency overlap and interface compatibility before substituting.
